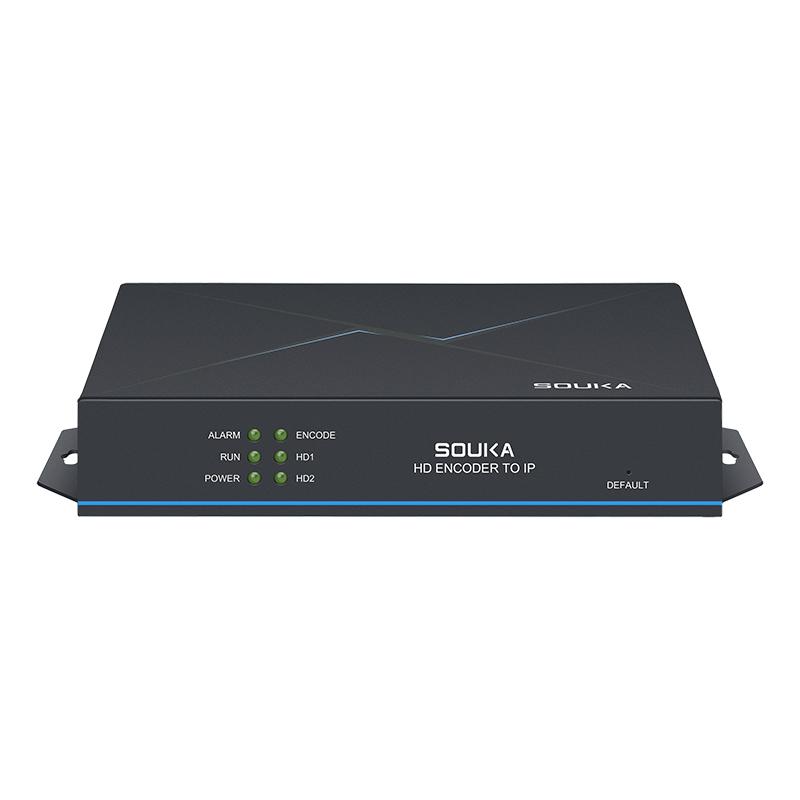

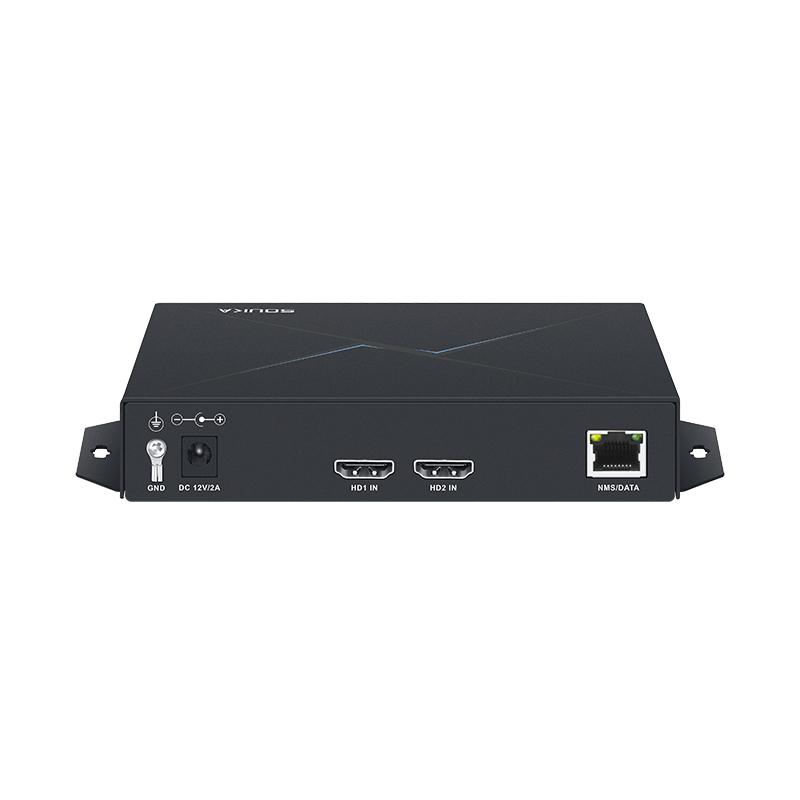

Dual HD to IP Encoder

The SKD2110 is designed to convert the HDMI signals to IP SPTS with H.264 encoding. You can put your HDMI source on a local network and/or internet with it. In this way, you can see your real-time video on the devices like smartphone, tablet, laptop or TV with the free VLC application or by IPTV receivers. Under RTMP protocol, you can publish your live stream to an online platform like TikTok, You Tube live, Facebook Live, etc.


  • Brand:

    SOUKA
  • Order(MOQ):

    1
  • Product Detail

SKD2110

Dual HD to IP Encoder

FEATURES:

1. Supports H.264 video encoding and AAC audio encoding
2. Supports input resolution up to 1080P_60 and output up to 1080P_30
3. Supports various of protocols including RTSP/RTMP/HTTP/HLS/UDP/RTP
4. Capable with customized text and image overlay function, which can be at any position on the screen.
5. Portable and low power consumption makes it 24 hours continuous working available.
6. User friendly WEB UI operation for quick set up


SPECIFICATION:

Input Connector

HDMI *2

Video Resolution

Up to 1080P_60

Video Encoding

H.264

Audio Encoding

AAC

Encoding Latency

150~300 ms

Media Protocol

RTSP/RTMP/HTTP/HLS/UDP/RTP

Graphic Overlay

User-defined running text and image overlay

Output Stream

IP in SPTS

Output Port

RJ45 for both NMS and DATA in 100/1000M

Power Consumption

Less than 5W

Dimensions

148*108*28mm

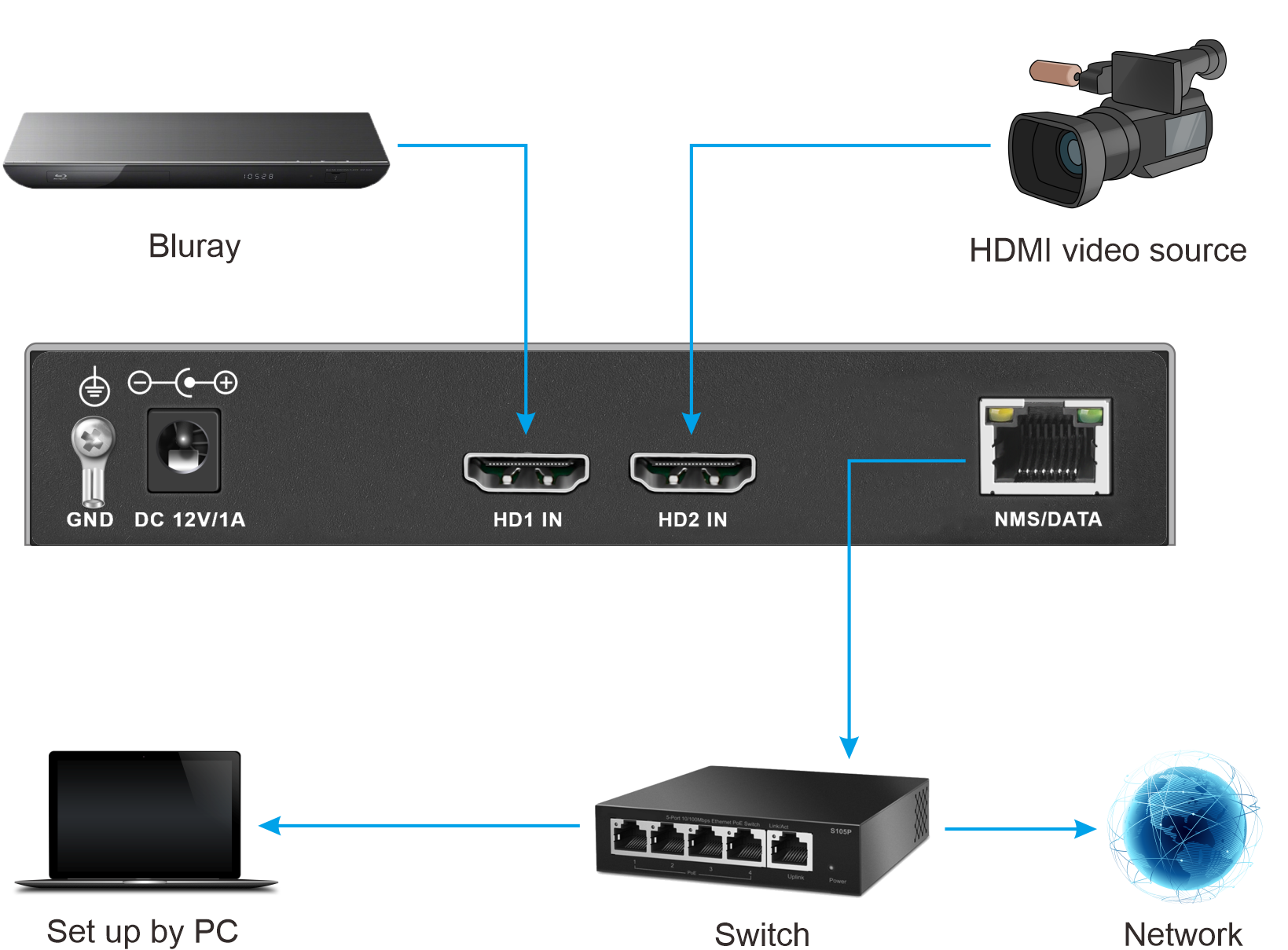

TYPICAL CONNECTION:
