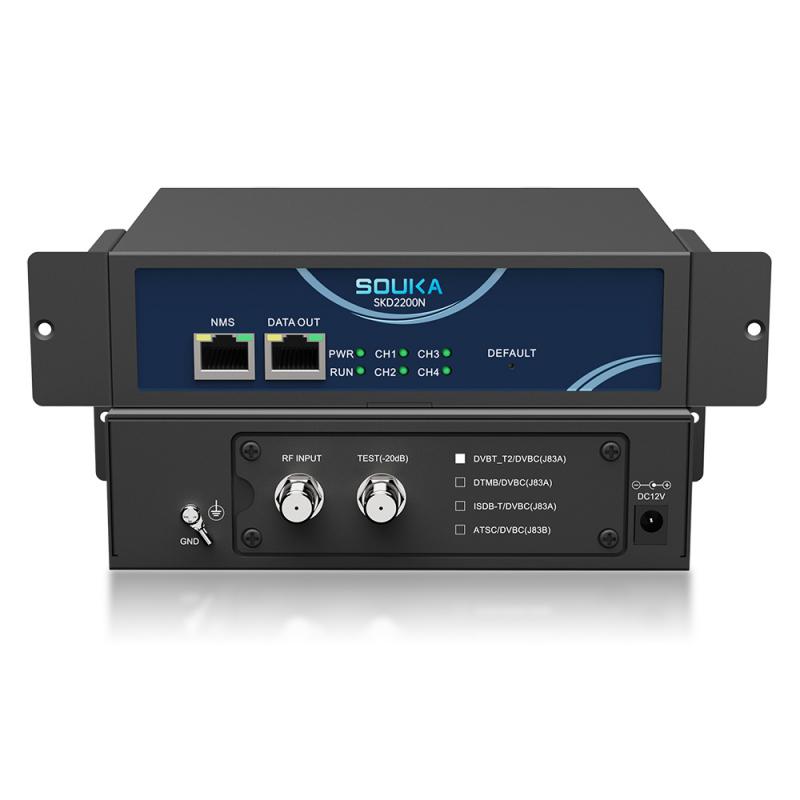

DVB to IP Gateway with DVB-T/-T2/-C Input

The SKD2270 is equipped with 4 tuners that receive DVB-T/T2 and DVB-C signals,allowing it to capture digital signal over the air. With its good scalability, this IP streamer is able to handle mulitple channels simultaneously and intergrate the output streams to existing IPTV system.

Brand:
SOUKA
Item NO.:
SKD2270
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
CHINA
Color:
BLACK
Shipping Port:
Shenzhen
Lead Time：
3 days

Inquiry now

Product Detail

SKD2270

DVB TO IP STREAMER

FEATURES:

1. Equipped with 4 DVB-T/-T2 and DVB-C indenpendent transponders
2. Output IP streams in 4 MPTS or 128 SPTS
3. Supports CA PID filtering, remapping and PSI/SI editing
4. Select desired services to stream out
5. Graphic user interface for easy configuration
6. Rack and wall mountable

DVB TO IP GATEWAY
