DVB-T and ISDB-T Encoder Modulator

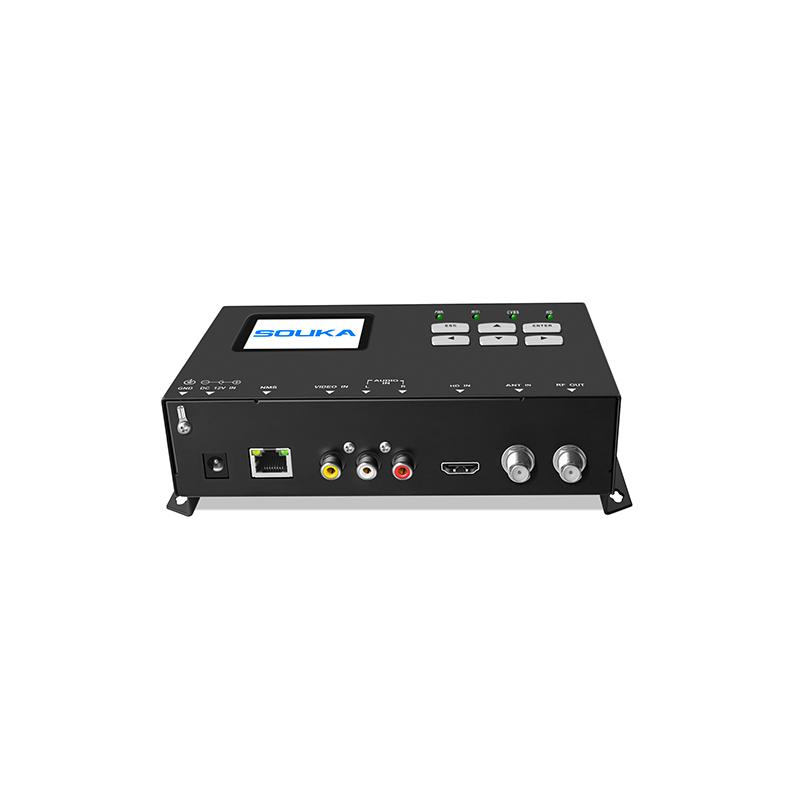

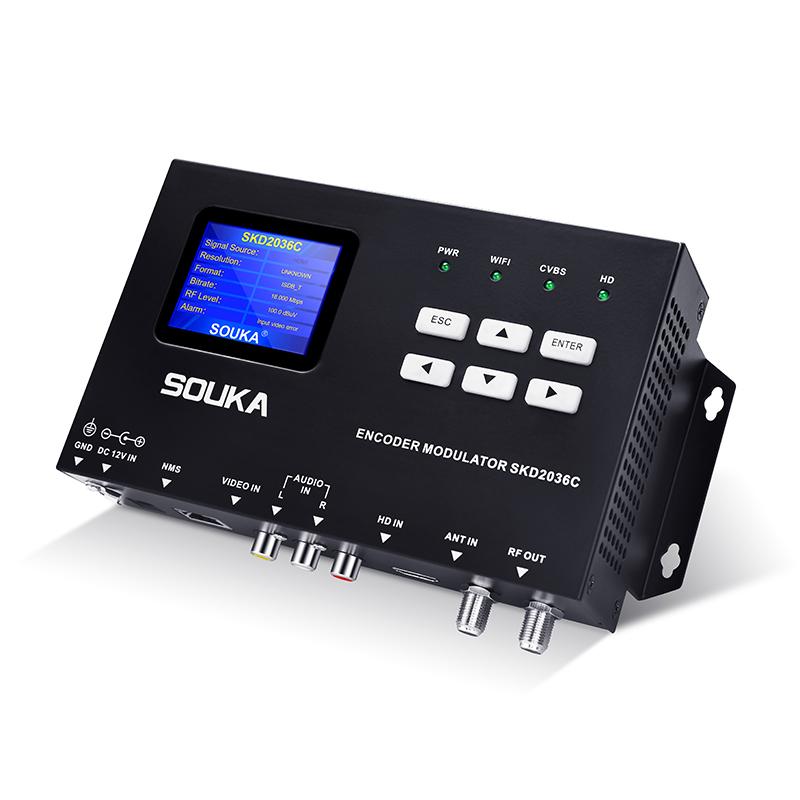

The SKD203X is a wall mounted digital modulator, which works by offering the incoming HD signal or CVBS signal into the H.264 encoder and output as a standard DVB-T or ISDB-T RF signal. With the easy front panel control you can set up the system in minutes.

  • Brand:

    SOUKA
  • Item NO.:

    SKD203X
  • Order(MOQ):

    1
  • Payment:

    Ex-work
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    2 days after payment confirmed
  • Product Detail

SKD203X

PORTABLE DIGITAL MODULATOR

FEATURES

1. Support H.264 FHD video encoding

2. Support DVB-T or ISDB-T modulation

3. Support RF loop through

4. Support LCN mode selection

5. TFT display for easy front panel setting

SPECIFICATION

ENCODING

Input Connector

HDMI 1.4 or CVBS

VIDEO

Encoding

H.264

Input Resolution

1920*1080_60P; 1920*1080_50P; 1920*1080_60i;

1920*1080_50i; 1280*720_60P; 1280*720_50P

720*480_60i; 720*576_50i

Bitrate

2 ~ 18 Mbps

AUDIO

Encoding

MPEG 1 Layer II

Sample Rate

32K/ 44.1K/ 48KHz

Bitrate

384kbps

MODULATION

DVB-T

Standard

DVB-T COFDM (6/7/8 M)

Constellation

QPSK,16QAM,64 QAM

MER

38 dB

Code Rate

1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval

1/32, 1/16, 1/8, 1/4

Transmission Mode

2K,8K

ISDB-T

Standard

ARIB STB-B31 (6M)

Constellation

16QAM, 64QAM

MER

38 dB

Code Rate

1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval

1/32, 1/16, 1/8, 1/4

Transmission Mode

2K,4K,8K

RF

Output Level

30dBmV

Output Frequency Range

100 ~ 999.999 MHz

Out-band Rejection

60dB

SYSTEM

Management

TFT +Control Keys; NMS;

LCN Insertion

YES

Language

English

Upgrade

NMS

GENERAL

Power Supply

DC12V 1A

Power Consumption

<10W

Weight

1.5KG

Dimension

199*109*61.7 (mm)
