Encrypted PCMCIA 4 DVBS/S2 Tuners to RF Modulator with CI Slots

SKD715XP integrates 4 independent PCMCIA descrambling modules for satellite signal decryption, supporting 256 IP inputs and global RF modulation standards (DVB-C/T/T2, ATSC, DTMB, ISDB-T). Enables batch configuration via intuitive web with PID remapping and PSI/SI editing, suitable for hotels, hospitals, and broadcast environments.

Brand:
SOUKA
Item NO.:
SKD715XP
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

SKD715XP

Encrypted PCMCIA 4 DVBS/S2 Tuners to RF Modulator with CI Slots for Digital CATV System

Features:

1. Each device supports up to 2 cards.
2. Supports 2-4 (the number of channels is optional in multiples of 2) independent PCMCIA large card descrambling.
3. Support UDP/RTP protocol input, support SPTS/MPTS stream processing.
4. Support 256 IP addresses, Gigabit input.
5. Supports PID remapping, PSI/SI information editing and insertion.
5. Supports digital modulation output of 4/8 frequencies, and the output supports DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB, ATSC (optional).
6. 1 Gigabit port and 1 management port.
7. Operated through PC (WEB), the device supports cloud management.

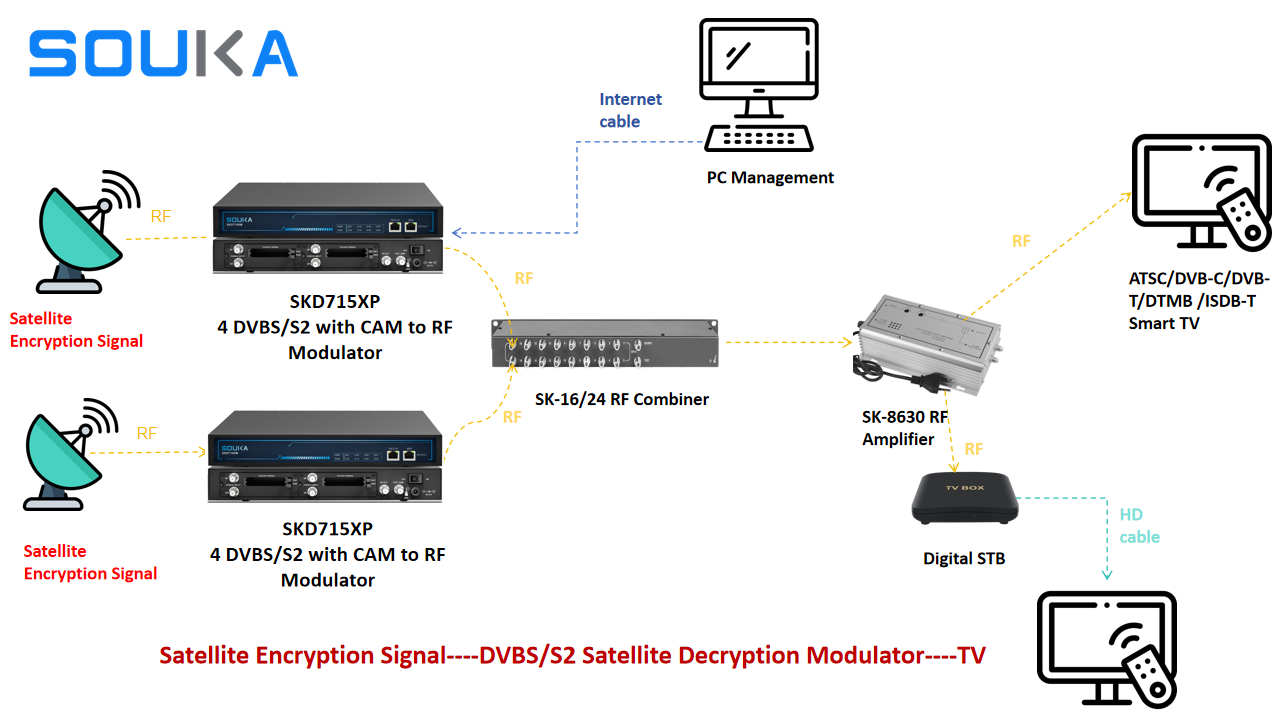

System topology diagram：

Specifications:

SKD715XP base unit parameter
Size	318(L)260(W)44(H)mm
Installation method	1U19inch Chasis-mounted、Wall-mounted, Desktop
Working temperature, humidity	-10℃-45℃、40%-70%
Storage temperature and humidity	-40℃-70℃、40%-95%
Power	Supply voltage	DC12V
Power	Maximum current	7000mA
Module input port	Cards	2
Module input port	Module for each card	2 PCMCIA Input Modules
IP Input	IP Input port	1 Gigabit RJ45 network port
IP Input	Input format	Support UDP/RTP protocol input, support SPTS/MPTS stream processing, support 256 SPTS or 8 MPTS input
RF output	Output port	F female connector，1 RF output and 1 -20dB test port output
	Output standard	DVBC(J83A/B/C),DVBT/T2,DTMB,ISDB-T,ATSC(optional)
	RF frequency range	50-870MHz minimum step 1MHz
	Output level	≥105dBuV（0-20dB Adjust range，step 0.5dB）
	Out band rejection	≥60dB
	Output impedance	75Ω
	Output frequencies	4/8 frequencies（optional）

Modulation parameters
J.83A/C	Standard	Annex A/C
	Channels	4
	Channels	8
	Constellation	16QAM、32QAM、64 QAM、128 QAM、256 QAM
	MER	≥36dB
	Symbol rate	3.600~6.960Msps
	Output frequency range( adjustable)	50-999.999MHz，minimum step 0.001MHz
	Output level	110dBuV±3dB
	Output level adjustment range	0～-20dB
	Out band rejection	≥60dB
	Output impedance	75Ω
DTMB	Standard	GB20600-2006
	Frequencies	4
	Frequencies	8
	Constellation	QPSK, QAM16, QAM64, QAM4_NR, QAM32
	FFT	Single carrier, multi-carrier
	Sync Frame	420, 595 and 945
	Code Rate	0.4, 0.6, 0.8
	Interweaving depth	None、240、720
	MER	≥36dB
	Output frequency	50-999.999MHz，minimum step 0.001MHz
	Output level	110dBuV±3dB
	Output level adjustment range	0～-20dB
	With out band rejection	≥60dB
	Output impedance	75Ω
ISDB-T	Standard	ANSI/SCTE 2001-B004
	Frequency	4
	Frequency	8
	Constellation	QAM4, QAM16, QAM64
	FFT	2K、4K、8K
	Guard interval	1/4，1/8，1/16，1/32
	Code Rate	1/2 ,2/3,3/4,5/6 ,7/8
	Interweaving depth	None，2k，4k，8k
	Bandwidth	6MHz
	MER	≥36dB
	Output frequency	50-999.999MHz，minimum step 0.001MHz
	Output level	110dBuV±3dB
	Output level adjustment range	0～-20dB
	With out band rejection	≥60dB
	Output impedance	75Ω
DVB-T	Standard	ETS 300 744
	Frequency	4
	Frequency	8
	Constellation	QAM4, QAM16, QAM64
	FFT	2K、4K、8K
	Guard interval	1/4，1/8，1/16，1/32
	Code Rate	1/2 ,2/3,3/4,5/6 ,7/8
	Interweaving depth	None，2k，4k，8k
	Bandwidth	6MHz，7MHz，8MHz，
	MER	≥36dB
	Output frequency	50-999.999MHz，minimum step 0.001MHz
	Output level	110dBuV±3dB
	Output level adjustment range	0～-20dB
	With out band rejection	≥60dB
	Output impedance	75Ω
DVB-T2	Standard	EN 302 755
	Frequencies	4
	Frequencies	8
	Constellation	QAM4, QAM16, QAM64,QAM256
	FFT	2K、2K、4K、8K、16K
	Guard interval	1/4，1/8，1/16，1/32
	Code Rate	1/2 ,2/3,3/4,5/6 ,7/8
	Interweaving depth	Support all 3 Time Interleave options without sub-slicing and no frame jump.
	Bandwidth	1.7，6，7，8，10MHz
	MER	≥36dB
	Output frequency	50-999.999MHz，minimum step 0.001MHz
	Output level	110dBuV±3dB
	Output level adjustment range	0～-20dB
	With out band rejection	≥60dB
	Output impedance	75Ω
ATSC	Standard	8VSB
	Frequencies	4
	Frequencies	8
	Bandwidth	6MHz
	MER	≥36dB
	Output frequency	50-999.999MHz，minimum step 0.001MHz
	Output level	110dBuV±3dB
	Output level adjustment range	0～-20dB
	With out band rejection	≥60dB
	Output impedance	75Ω
J.83B	Standard	Annex B
	Frequencies	4
	Frequencies	8
	Constellation	64 QAM、256 QAM
	Symbol rate	5.05641 MS/s(64 QAM)，5.360537 MS/s（256 QAM）
	MER	≥36dB
	Output frequency adjustment range	50-999.999MHz，minimum step 0.001MHz
	Output level	110dBuV±3dB
	Output level adjustment range	0～-20dB
	With out band rejection	≥60dB
	Output impedance	75Ω
