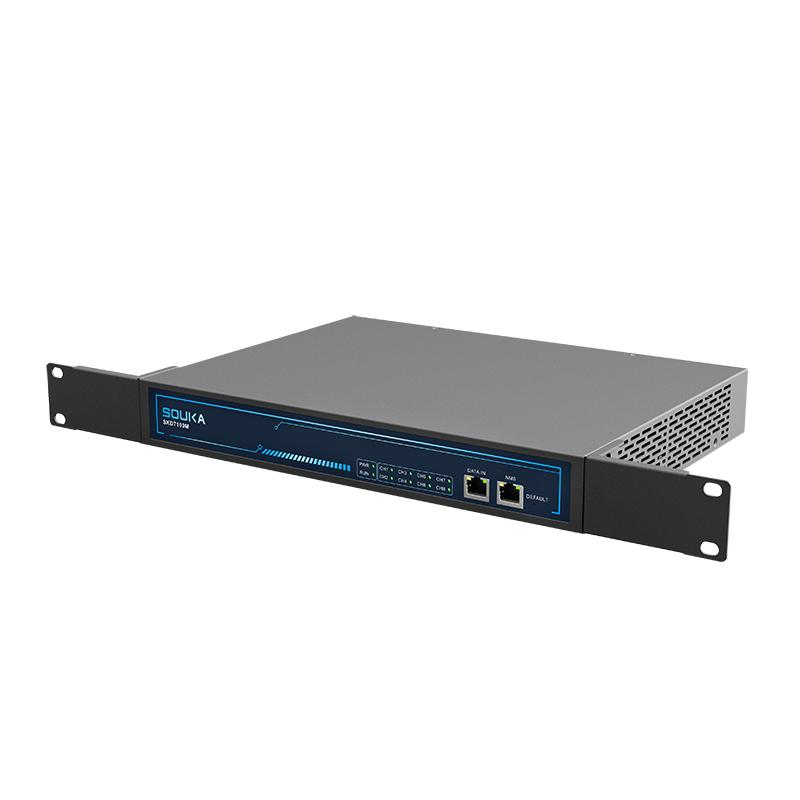

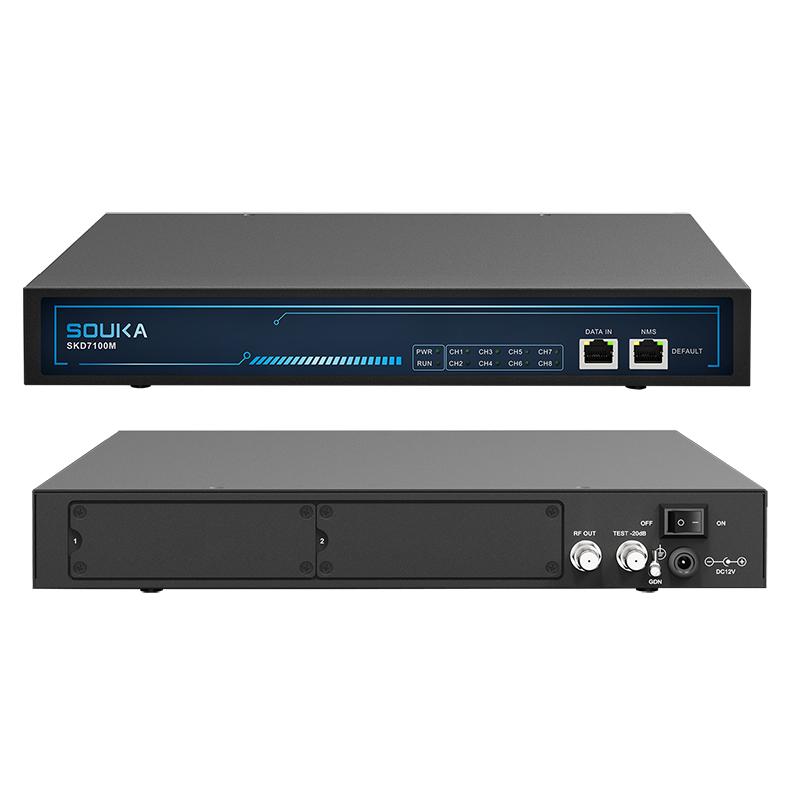

IP to DVB Modulator Edge Modulator with IP In and RF Output

The SKD710X is SOUKA’s second generation IP to RF modulator, which supports MPTS and SPTS IP inputs with the protocols of UDP and RTP. This modulator comes with one Gigabit IP input port and outputs RF frequencies in 4 or 8. It is extremely easy to use thanks to the built-in intuitive WEB interface.

Brand:
SOUKA
Item NO.:
SKD710X
Order(MOQ):
1
Payment:
EXW
Product Origin:
China
Color:
Black

Inquiry now

Product Detail

SKD710X

IP to RF MODULATOR WITH 256 IP INPUT AND 8 RF OUTPUT

FEATURES:

1. Offers 4 or 8 continuous output channels

2. Supports Unicast, Multicast and IGMP V2/V3

3. Supports CA PID filtering, remapping and PSI/SI editing

4. Supports up to 512 PIDs with PID remapping in manual or auto

5. Easy configuration with built-in Web UI

SPECIFICATION:

IP INPUT
Input Connector	1*100/1000Mbps port
Transport Protocol	UDP, RTP
MAX Input IP Address	256 channels
Input Transport Stream	MPTS and SPTS
Addressing	Unicast and Multicast
IGMP Version	IGMP v2, IGMP v3

RF OUTPUT
Output Connector	1* RF female 75Ω
Output Carrier	4 or 8 agile channel optional
Output Range	50 ~ 999.999MHz
Output Level	≥ 45dBmV
Out-band Rejection	≥ 60dB
MER	Typical 38 dB
DVB-C J.83A
Bandwidth	6M,7M,8M
Constellation	64QAM,256QAM
Symbol Rate	3600 ~ 6960 KS/s
DVB-T
Bandwidth	6M,7M,8M
Constellation	QPSK,16QAM,256QAM
Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval	1/4, 1/8, 1/16, 1/32
FFT	2k, 4k, 8k
Symbol Rate	6000,7000,8000 KS/s
ATSC
Bandwidth	6M,7M,8M
Constellation	8VSB
DVB-C J.83B
Bandwidth	6M,7M,8M
Constellation	64QAM,256QAM
DTMB
Bandwidth	8M
Constellation	16QAM,32QAM, 64QAM,QAM_4NR
Interleave Mode	NONE, 240 ,720
FEC	0.4, 0.6 ,0.8
Carrier Type	Multi or Single
Sync Frame	420, 549, 595
PN Phase	Variable or Constant
Work Mode	Manual or Preset

MULTIPLEXING
Table Supported	PSI/SI
PID Processing	Pass-through, Remapping, Filtering
Dynamic PID Feature	Yes

GENERAL
Input Voltage	90 ~264VAC
Power Consumption
Rack Space	1RU
Dimension (WxHxD)	31826044mm
Net Weight
Language	中文/ English

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : IP to DVB Modulator Edge Modulator with IP In and RF Output

Related Tags :

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Related Products

IP Input Edge QAM modulator

The SKD180X is a 1RU rack-mountable compact headend enables you to receive the content from IP network and modulate the programs into digital cable channels for distribution over coax. Three hot-swappable modular allows operators to scale service as demand increased. This product can help operators to rollout the video service by the existing cable system quickly, efficiently and easily.

IP to Analog Modulator with NTSC and PAL Output

SKD1709B is a high-density IP to analog RF platform that carry 32/48/64 any channels in a 2U box. Browser based user interface facilitate system setup and maintenance efficiency. This outstanding headend system consumes much less power than other competitors, eventually reduce operating cost and extend life cycle.

Ip QAM Modulator with Multi-protocol IP Input

The SKD180XS IP Modulator stands out with its efficient signal transmission capabilities, supporting both unicast and multicast protocols, and compatibility with a wide range of input protocols such as RTSP, HLS, and SRT. Additionally, its multi-scenario application feature makes it ideal for hotels , hospitals, and educational institutions, ensuring seamless integration into diverse digital TV front-end systems.

IP to RF Modulator

The SKD210X is designed to convert the IP stream over UDP/RTP protocols into the digital RF signal. It is ideal for applications requiring a low-cost and simple solution for IP to cable conversion for local TV system. It is extremely compact with 34MM height and rack mountable.

16 IN 1 Agile Modulator

The SK-16AM is a professional quality freqency agile 4RU rack mounted modulator providing 16 combined RF carrier for any channels covering 860 MHz. Moreover, the agile modulator cards are all plug-and-play designed with easy set-up and adjustments.

Hospitality VOD IPTV Streaming Server Support 100 HD Channels and 1000 Users

SKD3308M is a headend device for large scale commercial IPTV or digital TV systems suitable for business hotels, clubs, hospitals, bathhouses, schools, leisure clubs and other places (supporting 1000 or less terminals, 100HD/200SD channels). This is a IPTV server product with high integration, high cost performance and high configuration (default 32G, expandable to 128G memory). It can support multiple 100/1000M input ports, support mainstream protocol encapsulation format conversion and streaming media publishing, and can flexibly adapt to a variety of systems. It supports cloud network management, live channel, ordering service, mall, information release, music, hotel service and other functions, and can integrate with PMS system of hotel.

Dual Channel HD Encoder

The SKD2210H is designed to convert the HD signals to IP SPTS with H.264 encoding. Users can put your HD source on a local network and/or internet with it. In this way, users can see the real-time video on the devices like smart phone, tablet, laptop or TV with the free VLC application or by IPTV receivers.

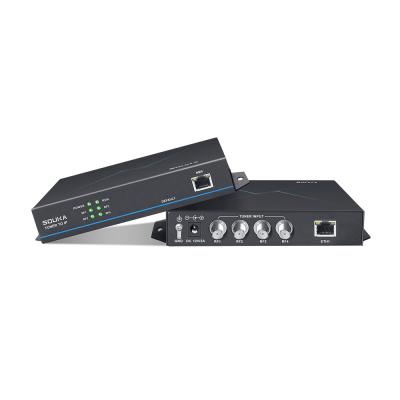

Tuner to IP Gateway with DVB-S/-S2 Input
