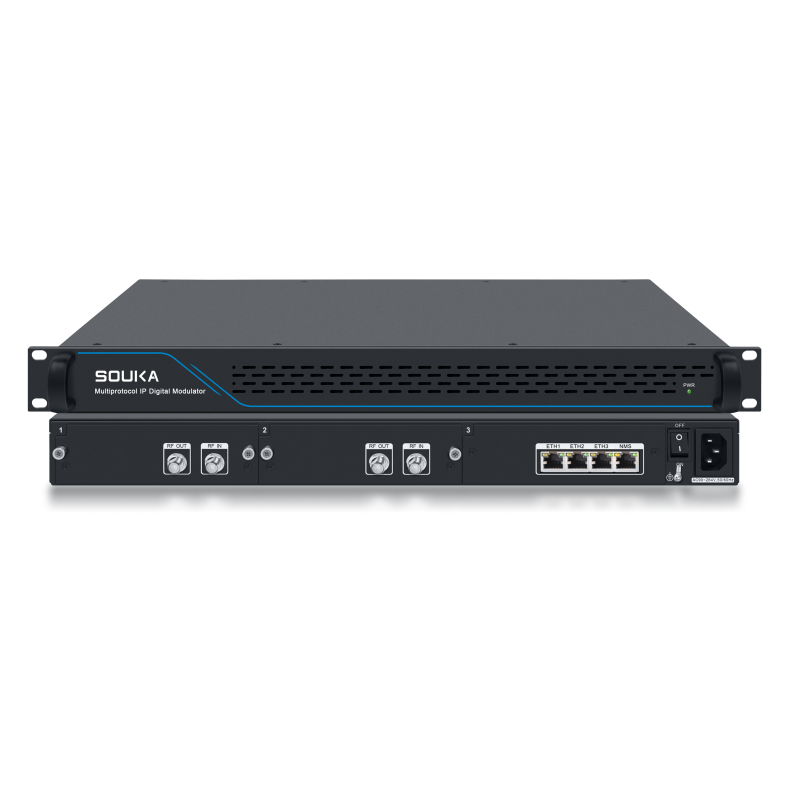

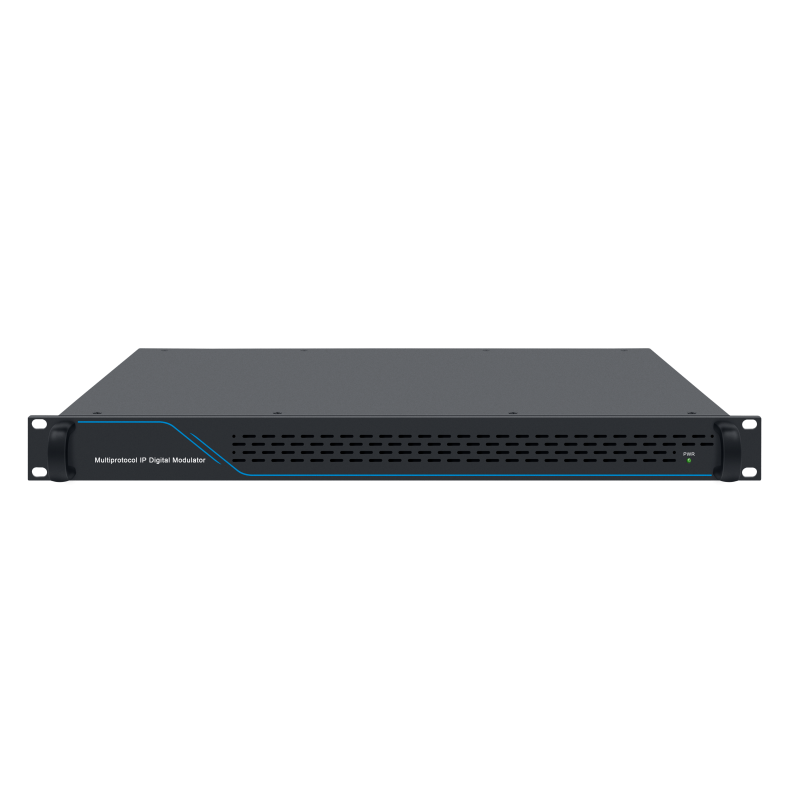

Ip QAM Modulator with Multi-protocol IP Input

The SKD180XS IP Modulator stands out with its efficient signal transmission capabilities, supporting both unicast and multicast protocols, and compatibility with a wide range of input protocols such as RTSP, HLS, and SRT. Additionally, its multi-scenario application feature makes it ideal for hotels , hospitals, and educational institutions, ensuring seamless integration into diverse digital TV front-end systems.

Brand:
SOUKA
Item NO.:
SKD180XS
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

SKD180XS

SRT HLS RTMP IP IPQAM ATSC DVB-T2 ISDBT Modulator

Features:

1. Supports unicast and multicast protocols, compatible with RTSP、HLS、SRT、RTMP、HTTP、UDP、RTP, IGMPV2 and V3 mainstream protocols.
2. Support 2 high-performance 4-channel IPQAM modules, Output standards support: DVBC（J.83A）、DVBC(J.83B)、ATSC(8VSB)、DTMB、DVBT/T2、ISDB-T (optional).
3. Multi-scenario application: hotels, homestays, hospitals, educational institutions, enterprises and prisons and other digital TV front-end systems.
4. Equipped with one network management port and three gigabit physical network ports.
5.Supports local WEB pages and remote cloud management devices.

Specifications:

IP input parameters
Port	3 Gigabit RJ45 ports
Support IP protocol	Unicast and multicast protocols, supporting RTSP/HLS/SRT/RTMP/HTTP/UDP/RTP and IGMPV2/V3
Streaming format	Program streaming (SPTS/MPTS)
NMS parameters
Port	1 Gigabit RJ45 port
Method	Local web page management Remote cloud management
Module cards
Cards	2pcs
Power
Model	EPP-100-12
Input voltage range	90V—264Vac
Rated frequency	50/60Hz
Rated power	100W
Protective function	Overload, overvoltage, over temperature protection
Alternating current	1.4A/115VAC 0.7A/230VAC
Physical parameters
Equipment size	486(W)366(D)43.8(H)mm
Package Size	535(L)430(W)120(H)mm
Working	-10℃-45℃、40%-70%
Weight	Net weight: 4.5kg; Gross weight: 5.8kg

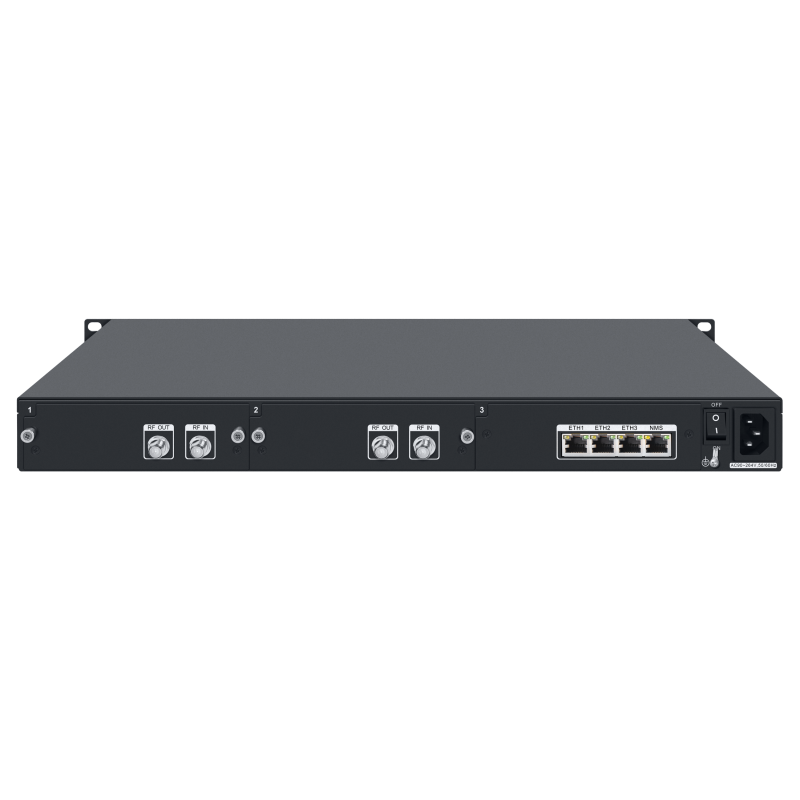

Interface parameters
RF OUT	IPQAM output port，female 75-5 F
RF IN	External RF signal input interface, female 75-5 F, insertion loss from RF IN to RF OUT 4±1dB
Modulation parameters
J.83A/C	Modulation: Annex A/C Channel: 4 Constellation: 16QAM, 32QAM, 64 QAM, 128 QAM, 256 QAM MER: ≥36dB Symbol rate: 3.600-6.960Msps Output range: 50-999.999MHz, minimum step 0.001MHz Output level: 110dBuV+3dB Level range: 0~-20dB Out-of-band suppression: ≥60dB Output Impedance: 75 Ω
ISDB-T	Modulation: ANSI/SCTE 2001-B004 Channel: 4 Constellation: QAM4, QAM16, QAM64 Carrier type: 2K, 4K, 8K Guard Interval: 1/4, 1/8, 1/16, 1/32 Code rate: 1/2,2/3,3/4,5/6 ,7/8 FFT: None, 2k, 4k, 8k Bandwidth: 6MHz MER: ≥36dB Symbol rate: 3.600-6.960Msps Output range: 50-999.999MHz, minimum step 0.001MHz Output level: 110dBuV+3dB Level range: 0~-20dB Out-of-band suppression: ≥60dB Output Impedance: 75 Ω
DVB-T	Modulation: ETS 300 744 Channel: 4 Constellation: QAM4, QAM16, QAM64 Carrier type: 2K, 4K, 8K Guard Interval: 1/4, 1/8, 1/16, 1/32 Code rate: 1/2,2/3,3/4,5/6 ,7/8 FFT: None, 2k, 4k, 8k Bandwidth: 6MHz, 7MHz，8MHz MER: ≥36dB Output range: 50-999.999MHz, minimum step 0.001MHz Output level: 110dBuV+3dB Level range: 0~-20dB Out-of-band suppression: ≥60dB Output Impedance: 75 Ω
DVB-T2	Modulation: EN 302 755 Channel: 4 Constellation: QAM4, QAM16, QAM64,QAM256 Carrier type: 2K, 4K, 8K, 16K Guard Interval: 1/4, 1/8, 1/16, 1/32 Code rate: 1/2,2/3,3/4,5/6 ,7/8 FFT: Support all 3 Time Interleave options without sub-slicing and no frame jump Code rate: 1/2 ,2/3,3/4,5/6 ,7/8 Bandwidth: 1.7，6，7，8，10MHz MER: ≥36dB Output range: 50-999.999MHz, minimum step 0.001MHz Output level: 110dBuV+3dB Level range: 0~-20dB Out-of-band suppression: ≥60dB Output Impedance: 75 Ω
ATSC	Modulation: 8VSB Channel: 4 Constellation: 6MHz MER: ≥36dB Output range: 50-999.999MHz, minimum step 0.001MHz Output level: 110dBuV+3dB Level range: 0~-20dB Out-of-band suppression: ≥60dB Output Impedance: 75 Ω
J.83B	Modulation: Annex B Channel: 4 Constellation: 64 QAM, 256 QAM MER: ≥36dB Output range: 50-999.999MHz, minimum step 0.001MHz Output level: 110dBuV+3dB Level range: 0~-20dB Out-of-band suppression: ≥60dB Output Impedance: 75 ΩOutput Impedance: 75 Ω
