All in One Hotel IPTV Server and Streaming Gateway Device

SKD7200N is a highly modular IPTV headend & Server platform comprising a central routing server with 8 gigabit IP ports supporting various streaming protocols (RTSP, HLS, SRT, RTMP, etc.) and up to 4 pluggable input modules. These modules enable versatile signal reception and encoding from a wide range of sources including HD, DVB-C/S/S2/T/T2, ATSC, DTMB, and ISDB-T. Designed for robustness and flexibility, it provides reliable multi-channel TV signal processing and IP distribution suitable for diverse settings like hotels, hospitals, and enterprises.

Brand:
SOUKA
Item NO.:
SKD7200N
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

SKD7200N

SOUKA Hotel IPTV System IP Streamer and IPTV Server in One Device Srt Hls HTTP UDP Rtp and Rtsp to HTTP UDP Hls and Rtmp Converter

Product Key Features:

1.High Integration and Modular Design: This product combines 1 external server host with 8-port I/O protocol conversion routing capabilities with 4 customizable functional modules, forming a highly integrated IPTV headend & Server platform. This modular design allows users to customize and expand functional modules according to actual needs, providing significant flexibility and scalability.

2.Diverse Functional Modules: The SKD72XXN Series offers various customizable functional modules, including HD encoding modules, digital TV reception and modulation modules for various standards, and transcoding server modules. These modules can meet the needs of different scenarios and users, enabling easy reception, processing, conversion, and transmission of digital TV signals.

3.Wide Applicability: This product is suitable for various IPTV systems, such as hotels, B&Bs, hospitals, educational institutions, enterprises, and correctional facilities. Whether for large institutions or small venues, the SKD72XXN Series provides stable and reliable digital TV signals to meet users' demand for high-quality audiovisual experiences.

Host
Model	Image

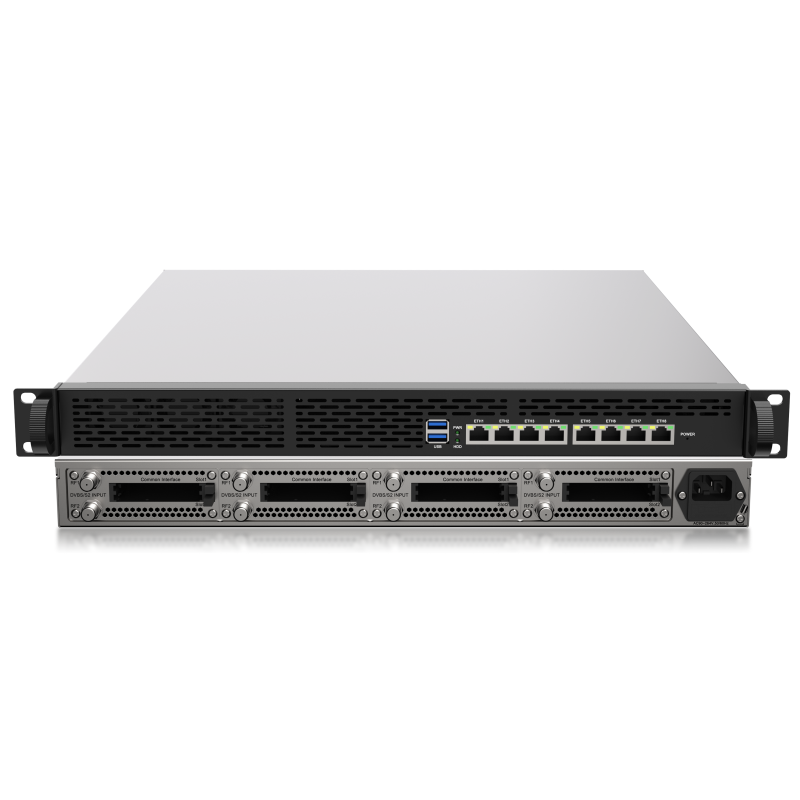

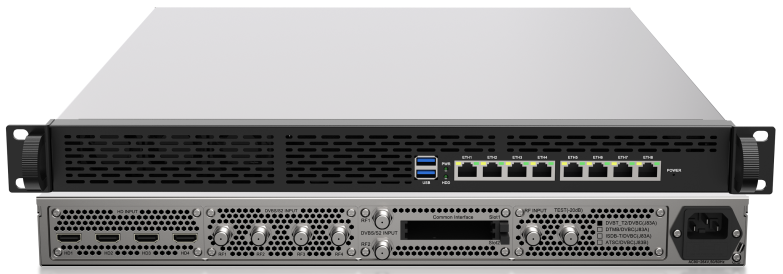

SKD7200N

Input Module Selection
Model	Description	Product Image
SKD7210B	4 channel HDMI input module. 4 modules can be installed per host.

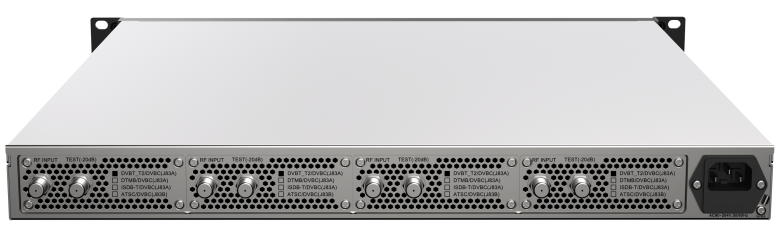

SKD7220	4 tuner channels, supports ATSC, DVBC (J.83B) input. 4 modules can be installed per host.
SKD7230	4 tuner channels, supports ISDB-T, DVBC (J.83A) input. 4 modules can be installed per host.

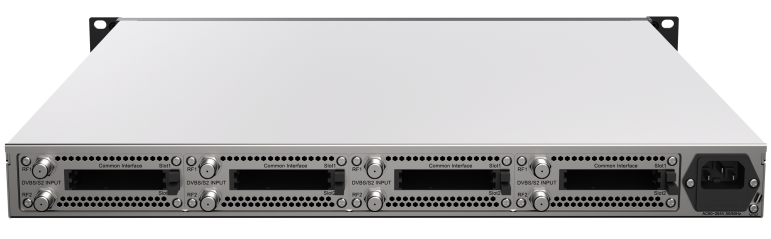

SKD7250	4 tuner channels, supports DVBS/S2 input. 4 modules can be installed per host.
SKD7250P	2 tuner channels, supports DVBS/S2 input, with CAM (Conditional Access Module) function. 4 modules can be installed per host.
SKD7260	4 tuner channels, supports DTMB, DVBC (J.83A) input. 4 modules can be installed per host.
SKD7260P	2 tuner channels, supports DVBC (J.83A) input, with CAM function. 4 modules can be installed per host.
SKD7270	4 tuner channels, supports DVBT/T2, DVBC (J.83A) input. 4 modules can be installed per host.
