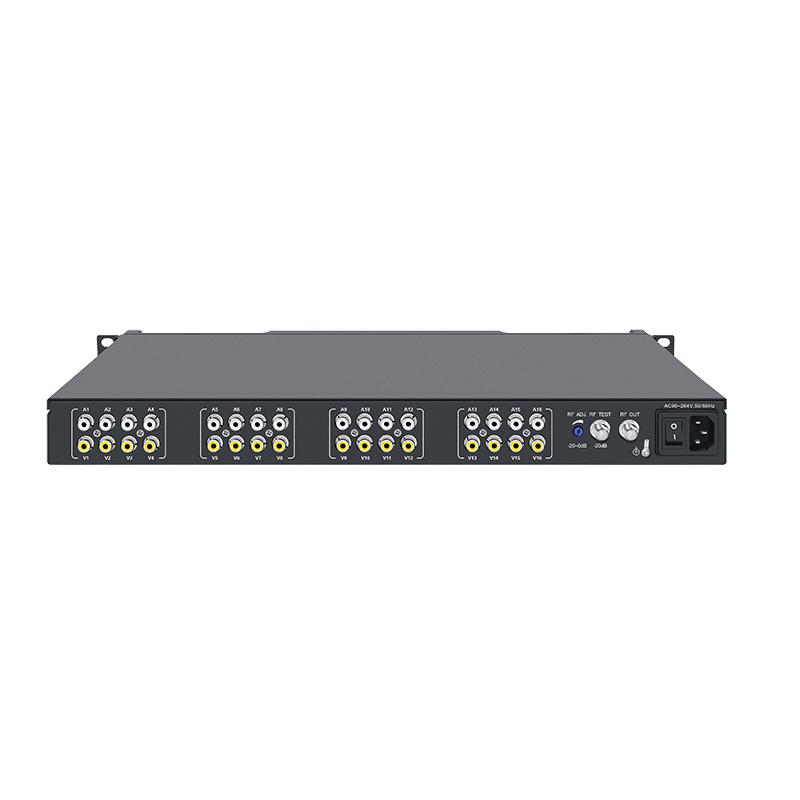

16 CHANNELS AGILE MODULATOR

The SKD162X is a professional quality agile modulator with 16 output channels in 1RU size. It is SAW filtered and microprocessor controlled with an output capability of 860MHz. Setup and tuning are easy and simple by the front panel. The unit offers high performance, low cost and compact design for the system operators.

  • Brand:

    SOUKA
  • Item NO.:

    SKD162X
  • Order(MOQ):

    1
  • Payment:

    Ex-work
  • Product Origin:

    China
  • Color:

    Black
  • Product Detail

SKD162X

16 CHANNELS AGILE MODULATOR

FEATURES:

1. SAW filtering for maintenance free adjacent channel configuration

2. Double I.F loop for superior in band C/N

3. Fewer cables and connector but greater reliability

4. Rack mountable 1RU space saving shipping cost

5. Front panel accessible level controls for easy set-up and adjustment


SPECIFICATION:

OUTPUT

RF

Output Connector

F Connector @ 75Ohms

Output Frequency

45~860MHz any 16 channels

Output Level

113 dBµV (Adj.)

Out-band Rejection

60dB

A / V Ratio

-21~ -18 dB (Adj.)

Frequency Stability

±5kHz

Test Point

-20 dB ±3dB

INPUT

VIDEO

Video Input Level

0.6-1.5Vp-p (87.5% Modulation)

Input Connector

Yellow RCA Jack

Video C/N

60dB

AUDIO

Input Level

0.8Vp-p(25KHz Peak Deviation)

Input Connector

White RCA Jack

GENERAL

POWER AND SIZE

Voltage

AC 90 ~ 264V @ 47~63Hz

Power Consumption

100W

Cooling Fans

3

Dimension

48.4*32.9*4.44 (CM)

Carton Size

55*39*13 (CM)

Shipping Weight

6KG
