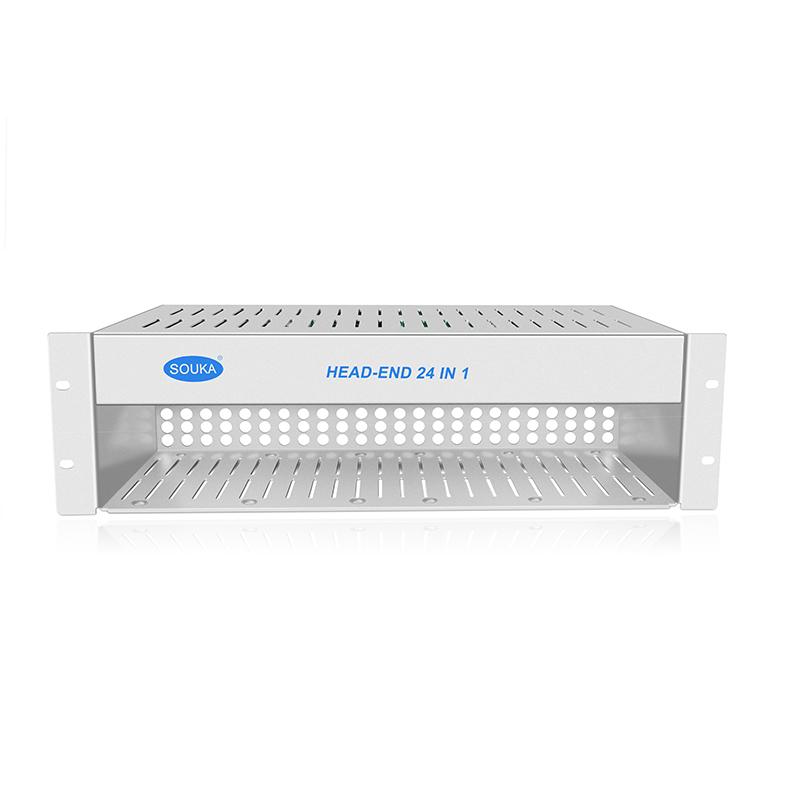

24 IN 1 ANALOG MODULATOR

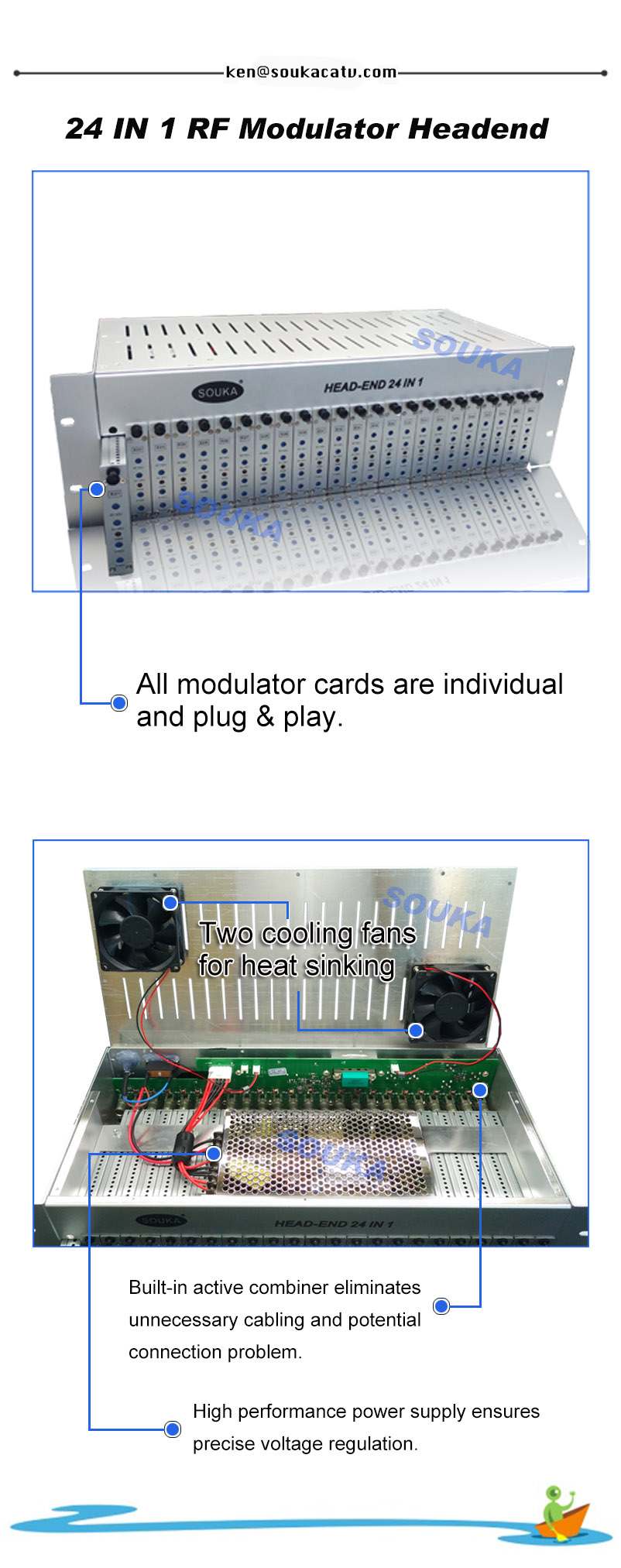

1. Switching power supply for installation flexibility and precise voltage regulation
2. Two cooling fans for long life performance
3. 45dBmV chassis output level, no need extra combiner

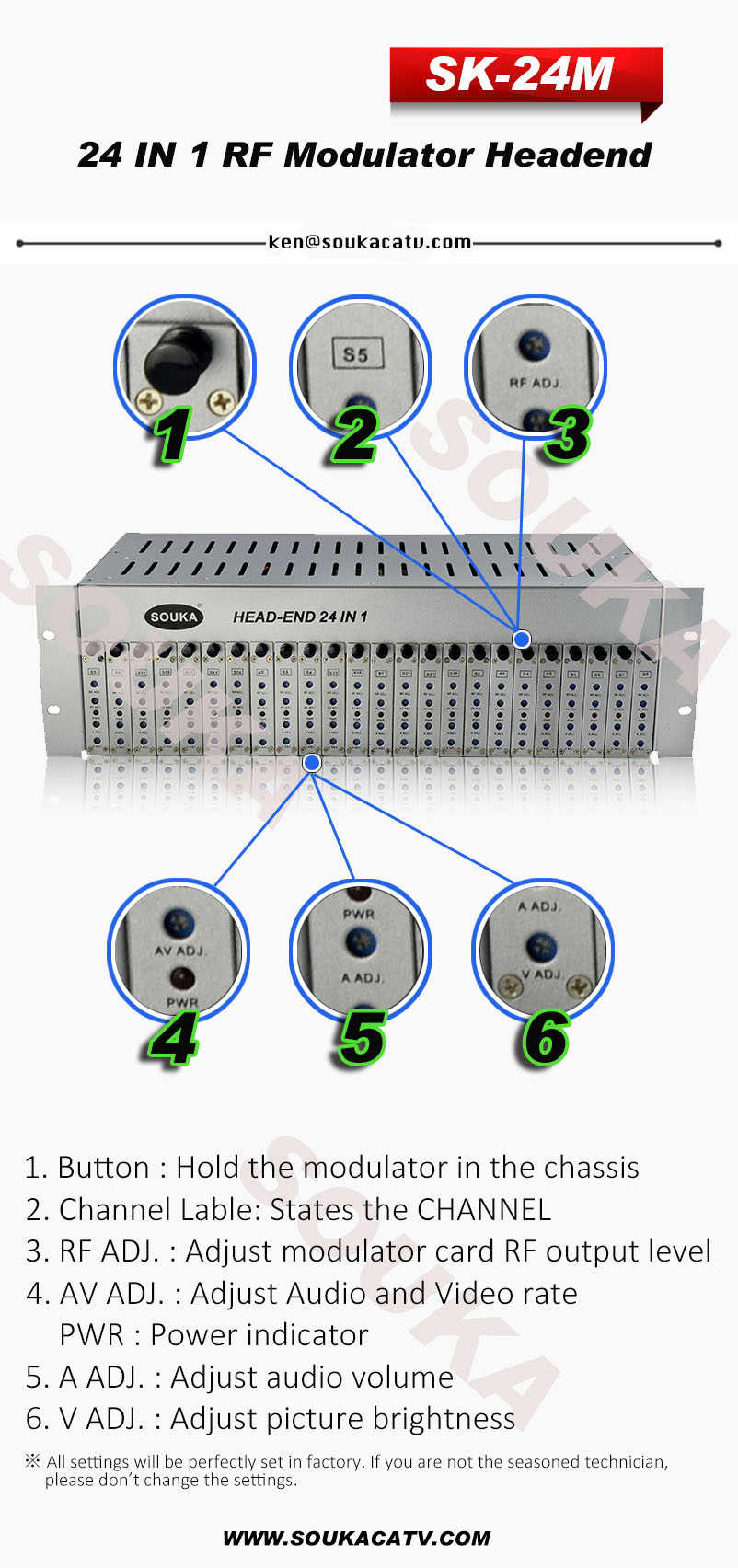

4. SAW (Surface acoustic wave) filtering on IF for superior in band C/N

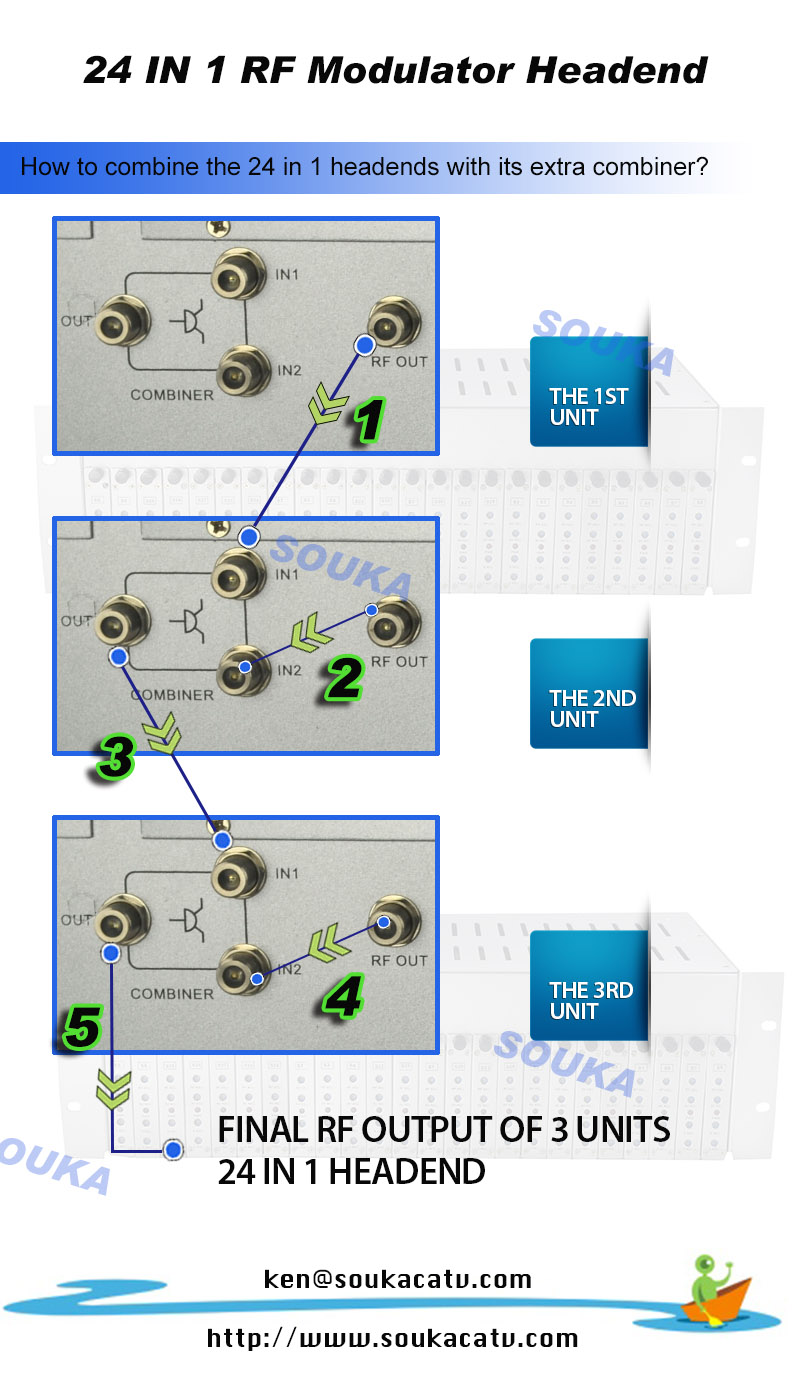

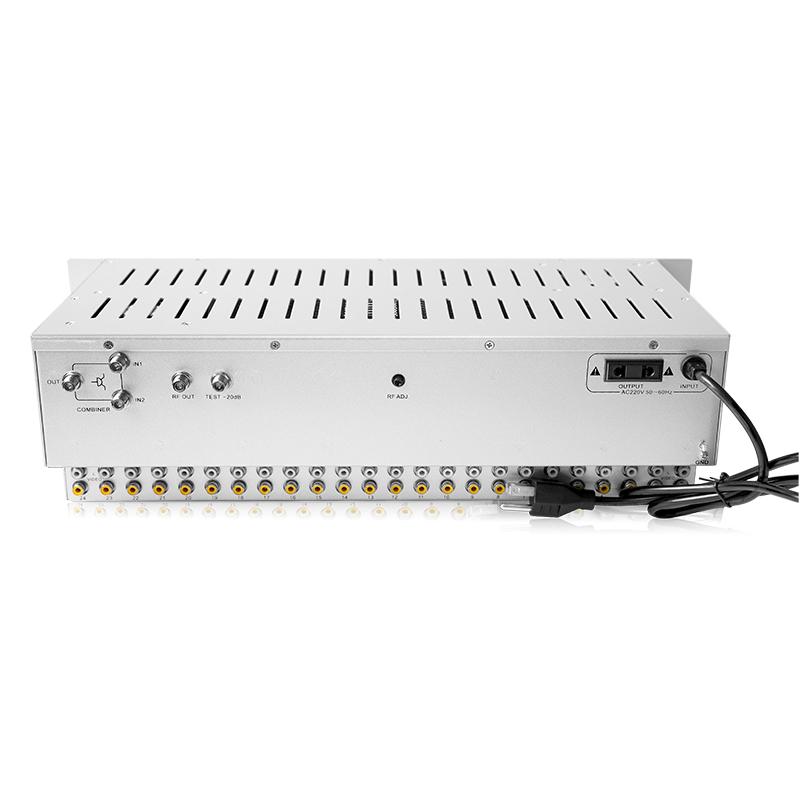

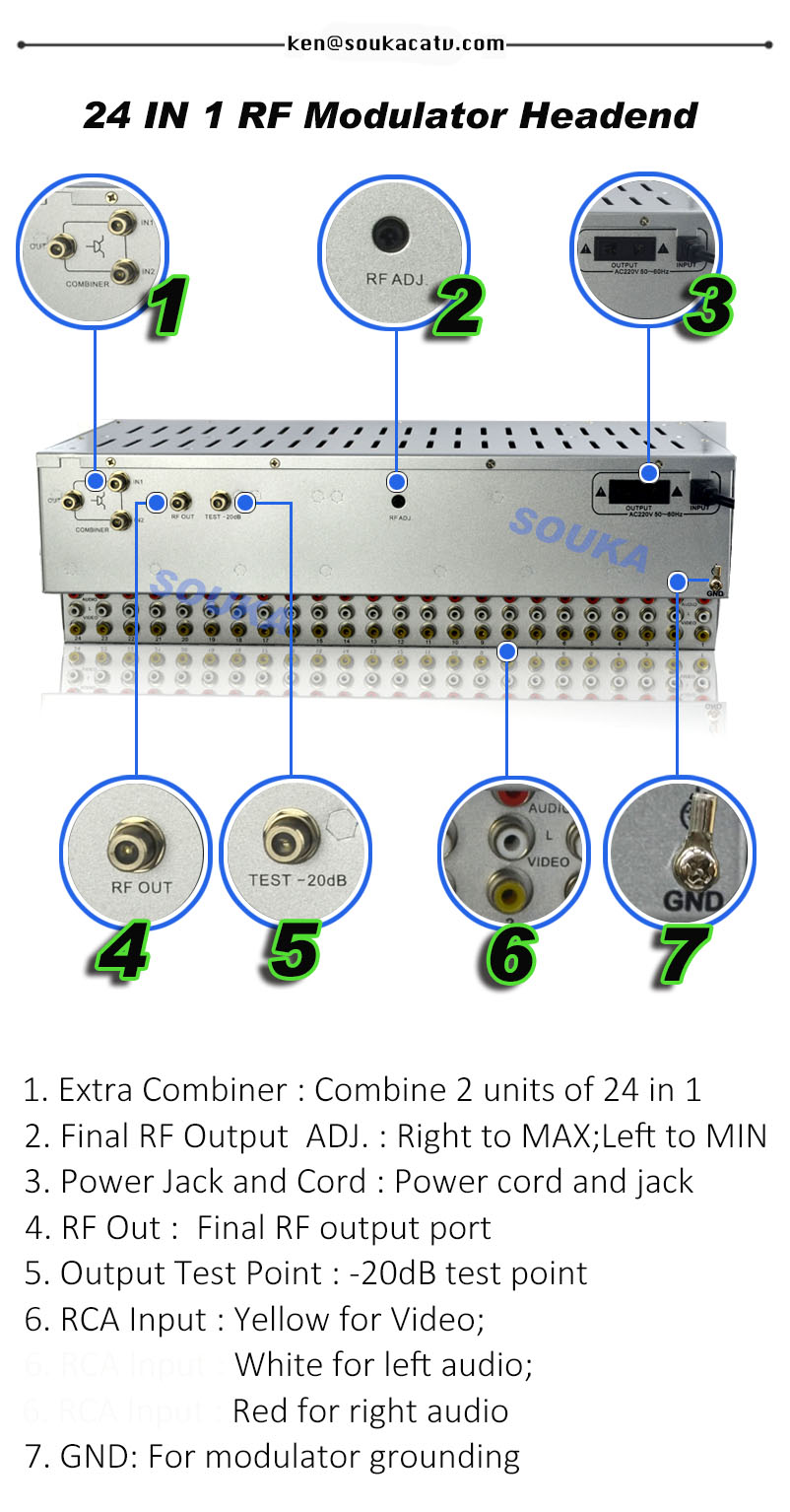

5. Front panel access controls enable easy setup
6. Rear panel has a combiner loop for easy connection
7. One unit contains 24 pcs fixed adjacent channel modulator cards
| Brand | SOUKA |
| Item NO. | SK-24M |
| Order(MOQ) | 1 |
| Payment | Ex-work |
| Product Origin | China |
| Color | Silver |
| Chassis | ||
| RF | Frequency Range | 45 ~ 860 MHz |
| Output Connector | F Connector | |
| Output Level | 102 dB µV (Adj.) | |
| Test Point | -20 dB | |
| Isolation Port to Port | ≥ 35 dB | |
| Return Loss | ≥ 12 dB | |
| Gain | + 4 dB | |
| GENERAL | Modulator Capacity | 16 |
| Input Voltage Range | 110V or 220V | |
| Cooling Fan | 2 | |
| Consumption | 70W (Fully Loaded) | |
| Dimension | 42 * 13 *20 cm | |
| Net Weight | 10 KG (Fully Loaded) | |
| Shipping Weight | 3.7 KG (Chassis Only) | |
| 11 KG ( Fully Loaded) | ||
| Carton Size | 53 * 30 * 24 cm | |

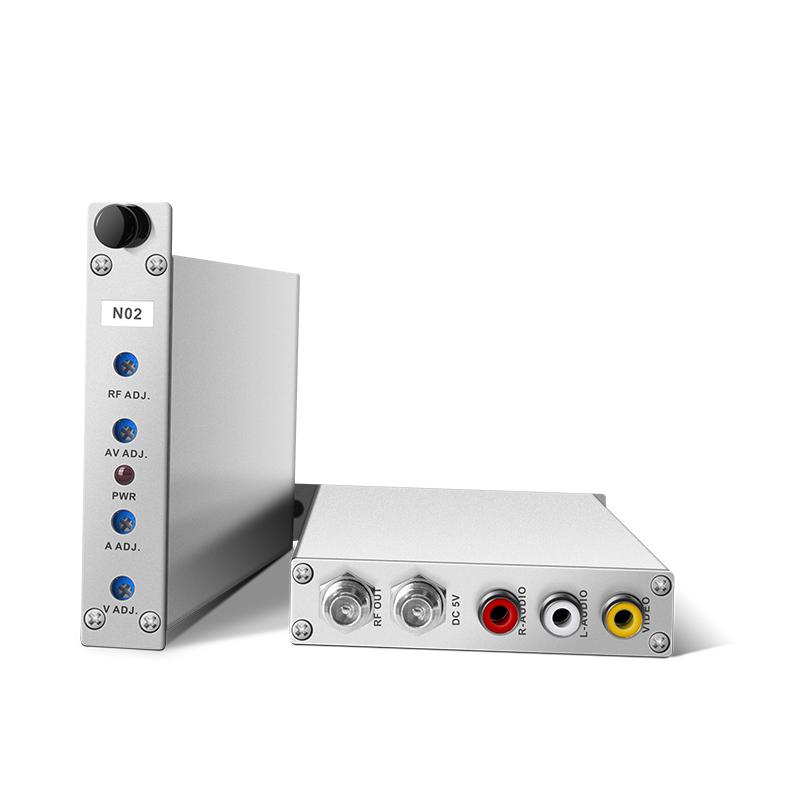

| Modulator Card | ||
| RF | Output Frequency | 45 ~ 860 MHz |
| Output Level | 95 dB µV (Adj.) | |
| Output Connector | F Connector | |
| A / V Ratio | -11 ~ -18 dB (Adj.) | |
| Frequency Stability | ± 5KHz | |
| Video Input Level | 0.6-1.5Vp-p (87.5% Modulation) | |
| Video Input Connector | Yellow RCA | |
| Audio Input Level | 1Vp-p (25KHz Dev.) | |
| Audio Input Connector | White and Red RCA (MONO) | |
| GENERAL | Voltage | DC 5V |
Engineered with broadcast-grade Surface Acoustic Wave (SAW) filtering and vestigial sideband (VSB) filtering circuits, SOUKA analog modulators deliver outstanding out-of-band suppression and an ultra-high Carrier-to-Noise ratio (C/N ≥ 60 dB). This precise RF circuit design enables stable adjacent-channel transmission without visual ghosting, diagonal herringbone distortion, or audio buzz across continuous frequency allocations, maximizing usable spectrum over legacy coaxial networks.
SOUKA analog modulators provide agile frequency synthesis across 47 to 862 MHz (VHF/UHF full-band coverage), offering firmware compatibility with global analog television standards including PAL-B/G/D/K/I, NTSC-M, and SECAM-D/K. The integrated RF power amplifier delivers an adjustable output level from 90 to 105 dBµV (with 0–20 dB continuously variable attenuation), directly driving clear analog signals across long 75-ohm coaxial trunk runs (RG6/RG11) without requiring external pre-amplifiers.
Designed for centralized headends, SOUKA provides high-density 4U 16-in-1 / 24-in-1 rackmount chassis featuring modular hot-swappable cards, dual active cooling fans, and high-efficiency commercial power supplies. By utilizing existing coaxial cabling, televisions with built-in analog tuners receive multi-channel video directly with zero external set-top boxes (Zero STB) and sub-10ms transmission latency, slashing renovation CapEx and eliminating remote-control maintenance across legacy hotels, schools, and hospitals.
