get in touchThe SKD3019 modulator is a frequency agile commercial RF modulator with SAW filter and microprocessor. Unlike traditional analog modulator, it has dual HDMI inputs to take in the 1080P HD signal and outputs an analog signal without noise and or stripes. Any standard HDMI source can be sued, including satellite receivers, Blu-ray and camera.
Brand:
SOUKAItem NO.:
SKD3019Order(MOQ):
1Payment:
Ex-workProduct Origin:
ChinaColor:
BlackProduct Detail
SKD3019
32 CHs HD to PAL and NTSC Modulator
FEATURES:
1. Two adjacent channels output per module with SAW filters
2. Phase-locked-loop design guarantees precise frequency locking
3. Double conversion provides superior spurious output suppression
4. Single-slot design allows up to 16 units in SOUKA’s SKD-M3 chassis
5. Set up and upgrade by NMS
SPECIFICATION:
SKD3019 HD to ANALOG MODULATOR |
|||||
INPUT |
|||||
Input Connector |
HDMI 1.4 *2 |
||||
Input Resolution |
1920*1080_60P; 1920*1080_50P; 1920*1080_60i; |
||||
1920*1080_50i; 1280*720_60P; 1280*720_50P |
|||||
Audio |
Sample Rate |
32K/ 44.1K/ 48KHz |
|||
Bitrate |
384kbps |
||||
OUTPUT |
|||||
Output Connector |
75Ω F-Female *1 |
||||
Output Frequency |
50~870 MHz Agile |
||||
Frequency Stability |
±5KHz |
||||
Output Level |
≥100dBuV |
||||
Spurious Output |
≥60dB |
||||
Carrier to Noise |
60dB |
||||
Flatness |
±1dB |
||||
GENERAL |
|||||
Power Supply |
DC12V 1.5A |
Power Consumption |
<W |
||
Weight |
KG |
Dimension |
132.5*201.7*21.05(mm) |
||

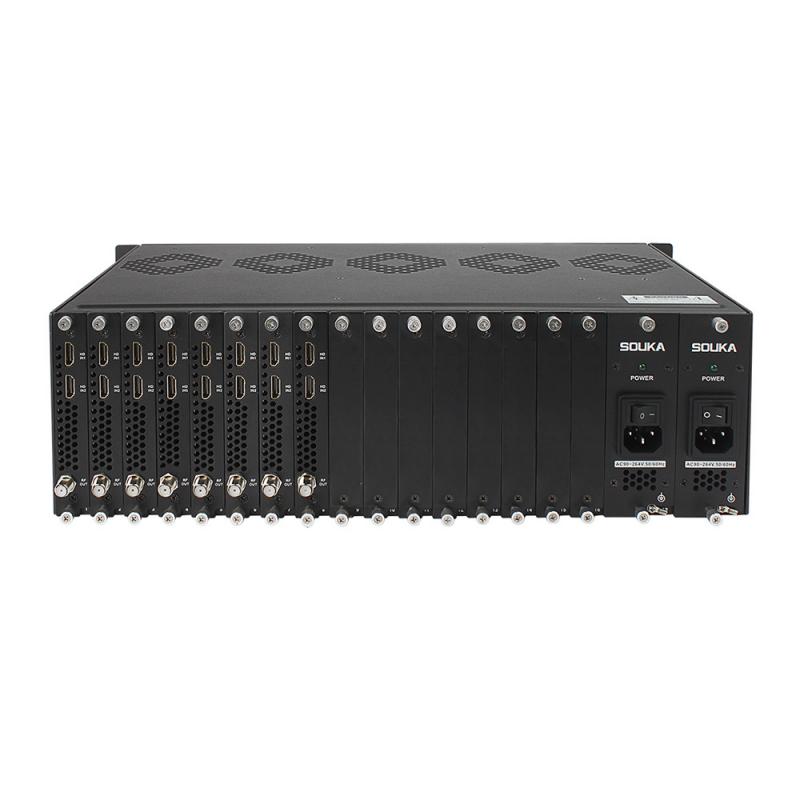

SKD-M3 CHASSIS |
|||||
Slot Number |
22 |
Fan Number |
5 |
||
Dimensions |
|
Net Weight |
|
||
SKD-MPS |
|||||
Hot-Swap |
Yes |
Redundant |
Yes |
||
UL Listed |
Yes |
Slot |
2 slots each piece |
||
Voltage Range |
80 ~ 264 VAC |
Frequency Range |
47 ~ 63 Hz |
||
Humidity |
20 ~ 90% RH non0condensing |
Working Temp. |
-30 ~ +70 ℃ |
