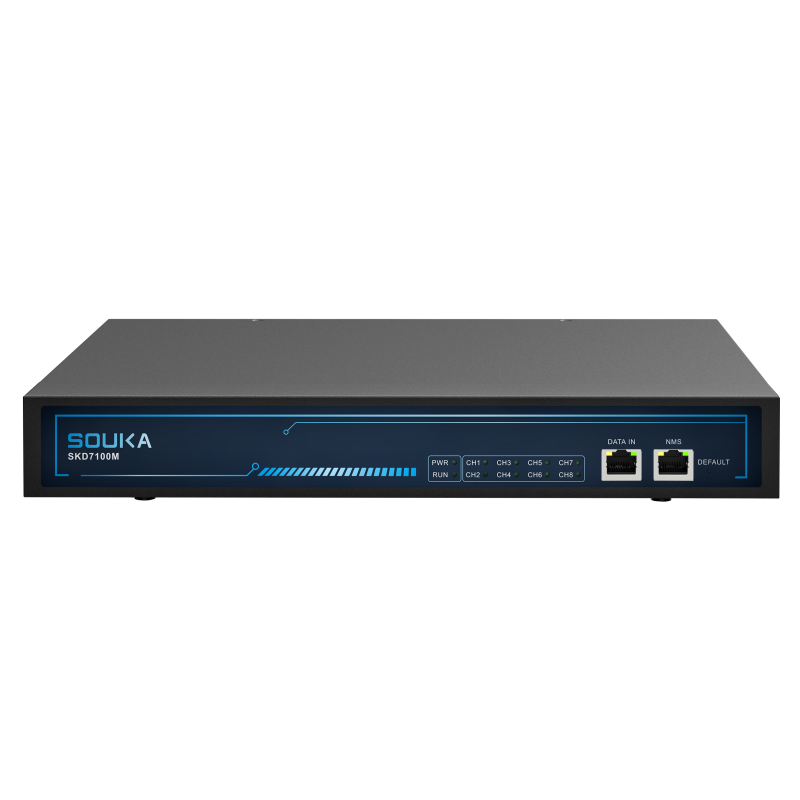

4 or 8 IN 1 HD Encoder Modulator for Digital TV System
1. A single device supports up to 2 cards.
2. Support 4-8HD channels, H.264 video encoding (optional) input.
3. Support UDP/RTP protocol input, support SPTS/MPTS stream processing.
4. Support 256 IP addresses, Gigabit input.
5. Supports PID remapping, PSI/SI information editing and insertion.
6. Supports digital modulation output of 4/8 frequency points, and the output supports DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB, ATSC (optional).
7. 1 Gigabit port and 1 management port.
8. Operated through PC (WEB), the device supports cloud management.
| Brand | SOUKA |
| Item NO. | SKD711X |
| Order(MOQ) | 1 |
| Payment | EX-WORK |
| Product Origin | China |
| Color | Black |
| Shipping Port | Shenzhen |
| Lead Time | 3 working days |
| SKD711X base unit parameter | ||
| Size | 318 ( L )* 260 ( W )* 44 ( H )mm | |
| Installation | 1U19 inch rack 、 wall hanging, desktop | |
| Working temperature, humidity | -10℃-45℃、40%-70% | |
| Storage temperature and humidity | -40℃-70℃、40%-95% | |
| Power | Supply voltage | DC 12 V |
| Maximum current | 7000 mA | |
| Module input port | Cards | 2 |
| Module for each card | 4 HD Input Modules | |
| IP Input | IP input port | 1 Gigabit RJ45 network port |
| Input format | Support UDP/RTP protocols input , support SPTS/MPTS stream processing ， support 256 IP address | |

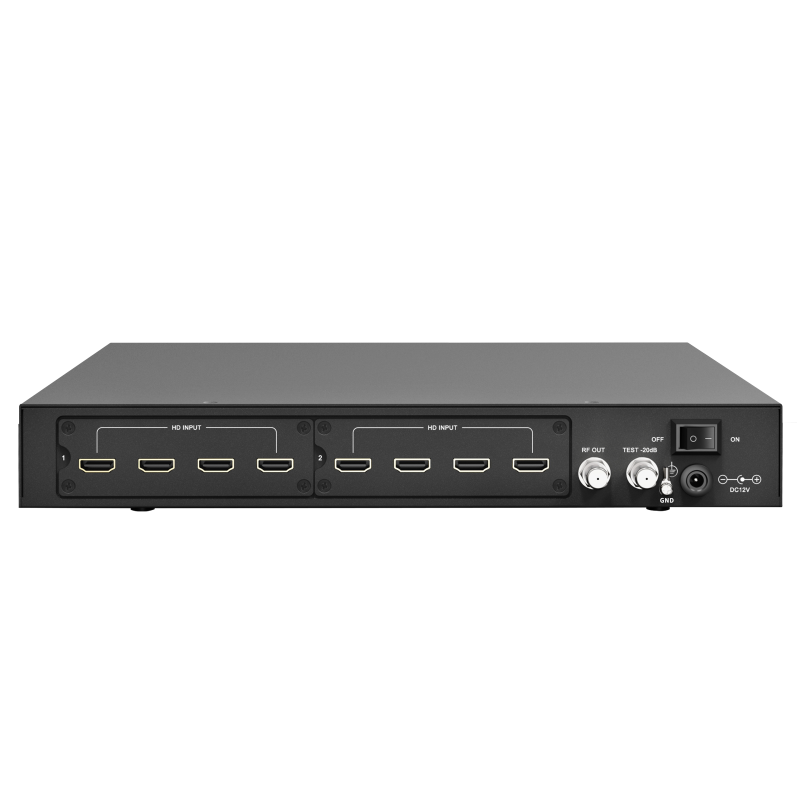

| RF output | Output port | female connector，1 RF output and 1 -20dB test port output |
| Output standard | DVBC(J83A/B/C),DVBT/T2,DTMB,ISDB-T,ATSC(optional) | |
| RF frequency range | 50-870MHz minimum step 1MHz | |
| Output level | ≥105dBuV（0-20dB Adjust range， step 0.5dB） | |
| Out band rejection | ≥60dB | |
| Output impedance | 75Ω | |
| Output frequencies | 4/8 frequencies（optional） | |
Engineered with full-band agile RF frequency synthesis across 47 to 862 MHz (expandable to 1000 MHz), SOUKA digital modulators support software-switchable broadcast standards—including DVB-T (COFDM), ATSC 8VSB, DVB-C (Clear QAM J.83A/B/C), ISDB-T, and DTMB. Featuring advanced surface acoustic filtering and low phase noise circuitry, the hardware achieves an exceptional MER (Modulation Error Ratio) ≥ 40 dB with 70 to 105 dBµV adjustable RF output, delivering crystal-clear 1080P/4K video over legacy 75-ohm coaxial lines (RG6/RG11) without snow, ghosting, or interference.
Integrated with dedicated ASIC/FPGA hardware compression engines, SOUKA encoder modulators process multi-channel HDMI (HDCP decryption compliant) and HD-SDI video inputs in real time via H.264 (AVC) and H.265 (HEVC) with ultra-low transmission latency (<200ms). By converting video feeds directly into standardized digital RF television channels, commercial displays tune in directly via their built-in digital tuners—completely eliminating external set-top boxes (Zero STB) and slashing hardware procurement CapEx and remote-control maintenance by over 50%.
Designed for professional headends, SOUKA delivers scalable form factors from compact tabletop units to high-density 1U rackmount chassis (4, 8, 16, or 24 HDMI-to-RF channels) and modular 4U chassis with redundant hot-swappable power supplies. Engineers can configure Logical Channel Numbering (LCN), virtual channel tables (PSIP/VCT), and custom channel names either locally via the front-panel LCD screen and navigation buttons or remotely via an embedded Web GUI and SNMP network management console.
