SK-RM22S Shaoway Smart Control Panel (Ethernet Input)

An integrated, intelligent guest room control and service platform designed to enhance the guest experience and convenience. Tailored for modern hotels, the "Shaoway" smart control panel incorporates cutting-edge technologies to deliver an unprecedented level of convenience, comfort, and smart functionality. Through the application of this integrated system, the intelligent control and management of various in-room devices are achieved, boosting operational efficiency and service quality while injecting new vitality into the hotel industry.

Request a Custom Quote

Product Detail Specifications

SK-RM22S

Shaoway Smart Control Panel (Ethernet Input)

Features:

1. Highly integrated and intelligent: This control panel integrates POE WAN port access, wireless WiFi, AI voice control, smart touch switches, an AI speaker, infrared remote control learning, temperature control, and telephone functions into one unit, enabling comprehensive intelligent control and management of guest room devices.

2. Personalized and Customized Services: Leveraging AI algorithms, the system intelligently recommends music and TV programs based on guest preferences. It also automatically adjusts room temperature and lighting according to usage habits, creating a personalized accommodation experience. Additionally, the system supports customized settings to meet individual guest needs.

3. Convenient Operation and Efficient Experience: Equipped with a highly responsive touchscreen and smart AI voice control, guests can easily operate in-room devices without searching for remotes or performing complicated steps. Wireless Wi-Fi and Bluetooth smart control allow guests to enjoy high-speed internet and smart operations anytime within the room.

4. High Energy Efficiency and Environmental Sustainability: The system automatically adjusts room temperature and lighting based on guest usage and external conditions, helping to reduce energy consumption and lower hotel operating costs. Eco-friendly materials and energy-saving technologies are also used to minimize environmental impact.

5. Security and Privacy Protection: Advanced security technologies and encryption algorithms ensure the safety of guests’ personal information and privacy. The system also offers high stability and reliability, guaranteeing a seamless experience during the stay.

6. Easy Maintenance and Upgradability: Designed with a modular structure, the system allows hotel staff to perform maintenance and upgrades with ease. Remote monitoring and diagnostics enable quick issue detection and resolution, reducing maintenance costs.

7. Converged system and interconnectivity: It seamlessly integrates with converged IPTV, guest room control, network, broadcasting, music, telephone systems, and universal infrared forwarding systems, enabling interconnectivity and intelligent control of various devices within the guest room. Meanwhile, the system also supports integration with other smart devices and systems, enhancing the hotel’s level of intelligence.

8. Enhanced Hotel Image and Competitiveness: This control panel not only improves the guest experience but also showcases the hotel’s commitment to innovation and technology. By offering high-quality services and user-friendly operations, it boosts guest satisfaction and loyalty, strengthening the hotel’s competitiveness and market position.

In summary, the dedicated hotel smart fusion control panel—with its key features such as high integration, personalized services, convenient operation, energy efficiency, security, ease of maintenance, system integration, and enhanced hotel image—brings new vitality to the hospitality industry and drives the advancement of hotel intelligence.

Management Functions	Port speed limiting & bandwidth control.
	Compliant with IEEE802.3ah and ITU-U G.984.x standard
	Supports Wi-Fi 802.11n/b/g technical standards.
	Supports a maximum transmission distance of 20 km.
	Supports data encryption, broadcast storm suppression, and VLAN configuration.
	Supports PoE WAN port input.
	Supports port VLAN mode configuration.
	Supports power failure alarm.
	Supports QoS configuration.
	Supports port isolation.
	Supports firewall settings.
	Supports ACL (Access Control List).
	Supports PPPoE/DHCP Server/IPTV/NAT.
	Supports IPv4/IPv6.
Telephony Voice Functions	Supports three VoIP protocols: SIP (IMS compatible), H.248, MGCP.
	Supports heartbeat function with softswitch platforms.
	Supports ITU-T G.711, G.723.1, G.729 codecs and other compensation algorithms. Echo cancellation compliant with ITU-T G.168-2002 standard, with a maximum echo cancellation tail length of 128 ms.
	Supports high-speed and low-speed fax passthrough, including T.38.
	Supports high-speed modem (56 Kbps) dial-up access.Supports value-added services such as RFC2833 & redundant RFC2833, ringing tones, MD5 authentication, call transfer, call waiting, hotline, alarm clock, and abbreviated dialing.
	Supports 1 POTS interface and three-party calling with local mixing.
WIFI(2.4G/5G)	Fully compliant with IEEE802.11n b/g/ac,24GHz/5GHz Wi-Fi standards. Supports multiple SSIDs (up to 4 SSIDs). Supports automatic channel selection. Supports SSID hiding. Supports wireless encryption: 64/128-bit WEP, 802.1x, WPA, WPA2, etc. 300 Mbps (2.4GHz)/866 Mbps (5GHz).
Wireless Bluetooth	BLE
	BLE Mesh
	6LoWPAN
	Zigbee
	RF4CE
	HomeKit
	2.4GHz
Touch Screen	LCD Type： 16.7M TFT TRANSMISSVIE
	Glass Viewable Area Size: 8.0 inch
	Display Resolution: 800 (R.G.B) * 1280 pixels
	Pixel Size (WH): 0.13455 0.13455 mm²
	Backlight Type: LED (white, 21 LEDs)
	Capacitive Touch Panel Structure: Glass + Glass (G+G)
	Touch Points: 5-point multi-touch Transmittance: ≥ 85%

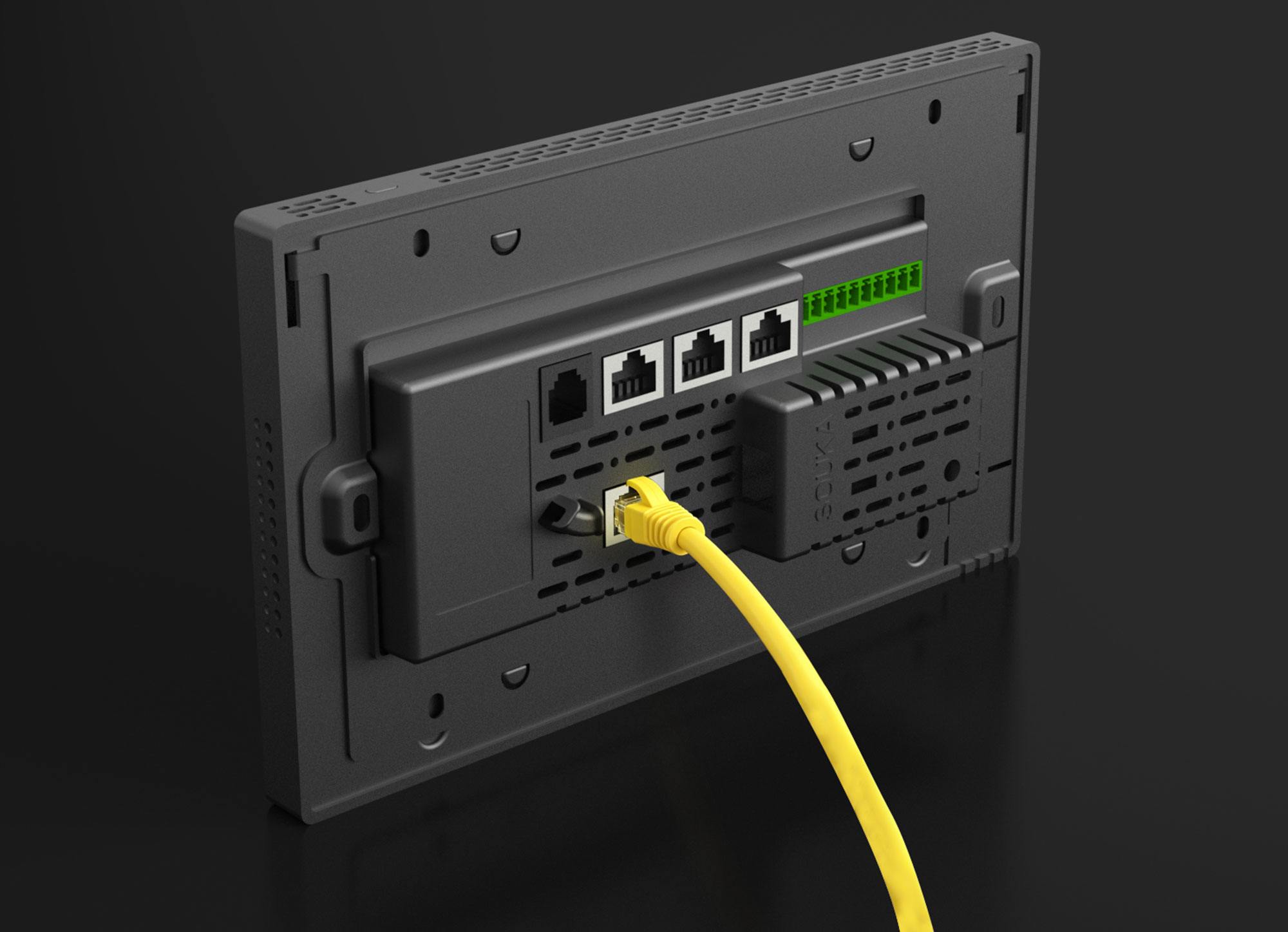

Network Interface	3 x 10/100/1000M auto-negotiation Ethernet ports.
	Full/half duplex mode auto-negotiation.
	RJ45 connector.
	Auto MDI/MDI-X
	100-meter transmission distance.
POTS	RJ11 interface.
Infrared Reception & Learning	Supports continuous decoding.
	Supported protocols: NEC, Panasonic, RC5, RC6, Sharp, Cisco, Toshiba, XMP, r-step, Sony 12Bit, Sony 15Bit.
	Carrier Frequency: 36-40 kHz.
	Wavelength: 940 nm.
Infrared Emission	Supports connection of an external IR emission extension cable.
Temperature Sensor	Type: NTC Thermistor for temperature measurement. Operating Temperature Range: -55°C to +125°C.
RS485 Interface	Baud Rate: 9600 bps
	Max Bus Load: 256 nodes
	ESD Protection: > ±3KV HBM (Level 3)
	Input Voltage: DC 12V, 2A
	Power Consumption: < 15W
Dimensions	(W×H×D) 213.2mm × 128.2mm × 37.5mm
Operating Temp/Humidity	-10℃-45℃、40%-70%
Installation	Wall-mounted

Smart Touchscreen Controllers: Unified Room Intelligence & Intuitive Hospitality Control

Unifying room lighting scenes, stepless 0-10V/DALI dimming, HVAC climate modulation, and guest services into an ultra-responsive IPS capacitive touch interface. Engineered with multi-protocol bus interoperability (RS-485, Modbus, KNX, PoE) and proximity wake-up sensing.

Commercial IPS Display Engineering & Architectural CNC Durability

Engineered with high-definition IPS full-view color displays (available in 3.5", 4", 5.7", and 10.1" form factors), SOUKA touchscreen controllers feature 2.5D AF anti-fingerprint tempered glass and precision CNC-machined aviation aluminum enclosures. Powered by multi-point capacitive touch sensors rated for over 50,000,000 touches, the hardware delivers scratch resistance, chemical cleaning resilience, and stable operation across high-ambient-humidity hospitality environments.

Multi-Protocol Bus Bridging (RS-485 / KNX / PoE) & Sub-50ms Local Execution

The controllers provide native hardware interfaces for industrial fieldbuses—including optically isolated RS-485, Modbus-RTU, and KNX—alongside Standard PoE (802.3af) / Gigabit Ethernet and optional Zigbee 3.0 mesh. Communicating directly with the in-room DIN-rail RCU host controller over the local bus, commands for 0-10V/DALI-2 stepless dimming, motorized curtains, and VRV/FCU thermostats execute locally in sub-50ms, ensuring instantaneous tactile response independent of central cloud connectivity.

Proximity Radar Sleep/Wake Telemetry & Batch White-Label UI Provisioning

Built-in proximity radar and ambient light sensors automatically put the display into an ultra-low-glow standby mode in dark rooms to eliminate light pollution during sleep. When a guest approaches within 15–30 cm, the panel instantly wakes up and illuminates control widgets. Integrators can fully customize UI layouts, hotel branding, and multilingual toggles via a centralized Web management portal, deploying updates across hundreds of rooms simultaneously via batch OTA network provisioning.
