SKD83 IPTV Android Box

This SKD83 IP Set Top Box is a network TV set-top box designed by SOUKA for hotels' TVs, which can customize the multi-language advertising background and LOGO, advertising and subtitles push, and the WIFI hotspots.

Request a Custom Quote

Product Detail Specifications

SKD83

IPTV Android Box

This SKD83 IP Set Top Box is a network TV set-top box designed by SOUKA for hotels’ TVs, which can customize the multi-language advertising background and LOGO, advertising and subtitles push, and the WIFI hotspots.

Brand	SOUKA
Item NO.	SKD83
Order(MOQ)	1
Payment	Ex-work
Product Origin	China
Color	Black
Shipping Port	Shenzhen

HARDWARE SPECIFICATION
Operation System	Android 7.1
CPU	(RK3328) Quad-core ARM Cortex-A53 up to 1.5GHZ
GPU	Mali-450MP2, OpenGL ES1.1/2.0
RAM	1GB
Memory	8GB
Language	Chinese, English…Multi-Language support
WIFI	IEEE 802.11 b/g/n 2.4GHz
Ethernet	100M
The extended storage	Micro SD Card, up to 32GB
Power Supply	DC 5V/2A 5.5mm DC-in
INTERFACE
HDMI Output (HDCP 1.4/2.2)	HDMI 2.0a to support maximum 4K@60fps
USB Port	1USB 2.0 + 1USB 3.0 + 1*TF
Data Output	1*SPDIF
AV Out	Support (Optional)
Network	1*RJ45 100M
Power Supply	1*DC Jack
Size	9cm9cm1.8cm
MEDIA PARAMETER
Audio Container	MP3, AAC, WMA, RM, FLAC, OGG
Audio Out	Supports MPS, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
I2S audio interface supporting 2-channel input and 8-channel (7.1) output
Built-in serial digital audio S/PDIF/IEC958 output and PCM input/output
Built-in stereo audio DAC
Stereo digital microphone PDM input
Supports concurrent dual audio stereo channel output with combination of analog+PCM or PCM
VIDEO CODEC
nMMU embedded
Real-time decoding of MPEG-1/2/4, H.264, VC-1
H.264/AVC Base/Main/High/High10 profile @ level 5.1; up to 4Kx2K @ 30fps
H.265 Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
VP9 profile 0; up to 4Kx2K @ 60fps
MPEG-1, ISO/IEC 11172-2, up to 1080P @ 60fps
MPEG-2, ISO/IEC 13818-2, SP@ML, MP@HL, up to 1080P @ 60fps
MPEG-4, ISO/IEC 14496-2, SP@L0-3, ASP@L0-5, up to 1080P @ 60fps
VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps
MVC is supported based on H.264 or H.265, up to 1080P @ 60fps
Support frame timeout interrupt, frame finish interrupt and bit stream error interrupt
Error detection and concealment support for all video formats
Output data format YUV420 semi-planar, YUV400 (monochrome), YUV422 is supported by H.264
For VC-1, upscaling and range mapping are supported in image post-processor; for MPEG-4 SP/H.263, using a modified H.264 in-loop filter to implement deblocking filter in post-processor unit
SOFTWARE EXTENSION
Google Play & APK install	Support
DLNA, Miracast Protocol	Support DLNA, Miracast Protocol
Remote Control	Remote controller
IM Software	Support Skype/QQ/MSN/GTALK (Depends on APK)
Office Software	WORD/EXCEL/PDF (Depends on APK install)
MIDDLEWARE FUNCTIONS
Function	Support or not
Language	YES
Time zone	YES
WIFI	YES
Booting Image	YES
Theme	YES
Video AD	YES
Weather	YES
Welcome Message	YES
Subtitle	YES
Auto Posting AD	YES
APP Living	YES
VOD	YES
Shopping	YES
Express Check-out	YES
Hotel Info	YES
More Customized Functions	YES

Commercial IPTV Set-Top Boxes: High-Performance Edge Decoding & Interactive Guest Core

Delivering carrier-grade 60p streaming, operator-locked firmware security, and batch OTA auto-provisioning. Engineered for hospitality and healthcare environments with native PMS interactivity and direct in-room smart RCU control.

Hardware-Accelerated Decoding & Sub-Second Channel Zapping

Powered by high-performance quad-core commercial processing chipsets, SOUKA set-top boxes deliver native Ultra HD @60fps output via HDMI 2.0b/2.1. Dedicated multi-codec hardware engines natively process H.265 (HEVC), H.264, VP9, and AV1 streams with dynamic HDR10 color reproduction. Coupled with predictive I-frame stream caching, the edge receiver achieves instant, sub-second channel switching (<1.0s) with zero tearing or audio desync.

Hardened Anti-Tamper OS & Zero-Touch Batch OTA Provisioning

Engineered for unattended enterprise operations, the STB runs a cryptographically signed, hardened Android / Linux OS with disabled USB debugging and blocked third-party APK sideloading to prevent unauthorized guest tampering. Utilizing TR-069 and HTTPS auto-provisioning protocols, the boxes automatically pull room assignments, channel maps, and UI templates upon network connection, supporting centralized batch Over-the-Air (OTA) firmware updates across thousands of endpoints without manual room entry.

Native PMS Interactivity & Converged In-Room GRMS Control

The edge receiver synchronizes natively with the central IPTV server to render interactive PMS / HIS guest portals—including personalized welcome greetings, digital dining orders, and express billing checkout. Furthermore, it bridges with in-room DIN-rail RCU host controllers over the local IP LAN, enabling guests to adjust lighting scenes, HVAC thermostats, and motorized curtains directly via the TV remote with sub-50ms local execution latency.

Request a Custom Quote

Flagship Innovations: The Industry Benchmark for Commercial AV & IPTV

Discover our most deployed hardware platforms for enterprise video distribution, smart room control, and commercial automation projects.

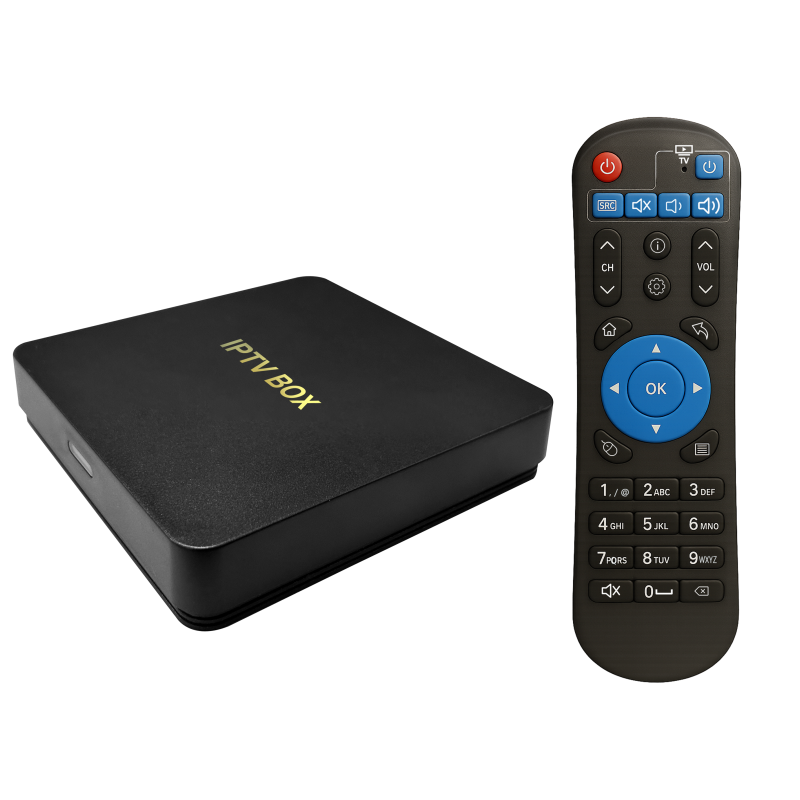

SKD8315 IPTV Android Set Top Box
