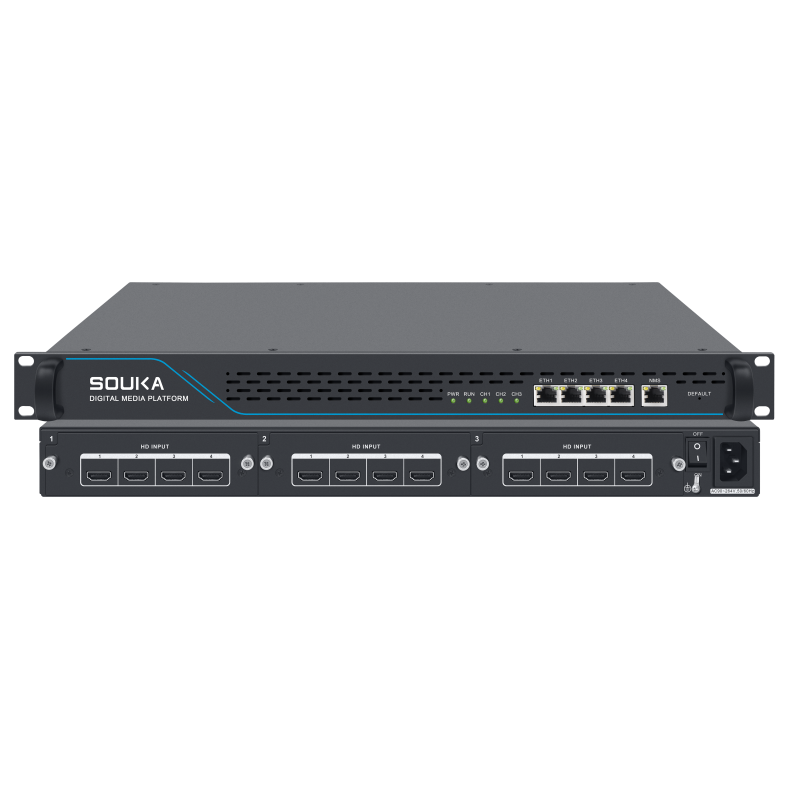

H.265/H.264 Multi-Channel HD Encoder

The SKD1510 12HDMI encoder stands out with its high-definition input capabilities (12HD input) and flexible IP output options (UDP, RTP, RTMP/HTTP/HLS, RTSP, SRT), ensuring seamless integration into diverse IPTV systems while delivering a superior audio-visual experience to users.

Brand:
SOUKA
Item NO.:
SKD1510
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

SKD1510
12 HDMI to IP Video Encoder H.265 H.264 with SRT RTMP RTSP HLS

Features:

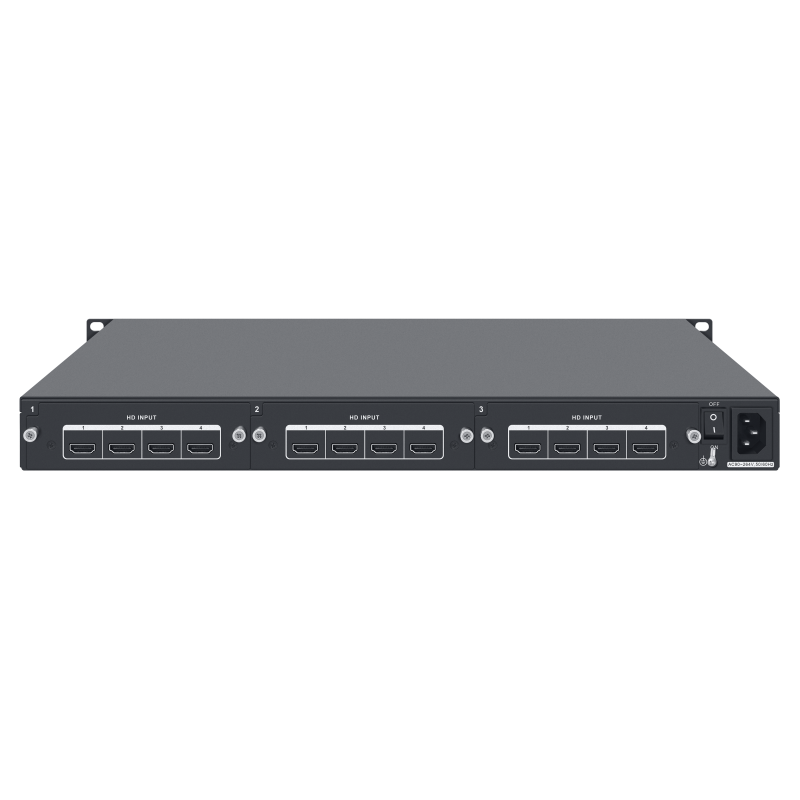

1. Each module has 4 HD input, 3 modules have 12 HD input in total

2. Supports IP output in 12 SPTS
3. Supports IP protocols: UDP/RTP/RTMP/RTSP/HTTP/HLS/SRT
4. Supports OSD settings
5. Video encoding:H.264 Baseline/Main/High Profile Level 5.1 encoding, H.265 Main Profile, Level 5.0 encoding

Principle Chart:

Specifications:

IP input parameters
Modules	3 pcs
Encoding Module	Each module has 4 HD input, 3 modules have 12 HD input in total
HD input	Compliant with MHL2.1, HDMI 1.4b, HDMI 1.4b 3D, HDCP 1.4 and DVI 1.0
Encoding performance	Supports up to 1080p@30fps H.265/H.264 encoding
Video encoding	H.264 Baseline/Main/High Profile Level 5.1 encoding H.265 Main Profile, Level 5.0 encoding
Rate Control Mode	CBR
Bit rate range	2000～13000kbps
Audio encoding	AAC
IP output parameters
Port	IP protocols
IP protocols	Support UDP, RTP, RTMP/HTTP/HLS, RTSP, SRT
Stream format	Support SPTS stream processing
IP address output setting	Support
Output port setting	Support
Service ID setting	Support
Service name setting	Support
PID setting	Support PMT PID,Video PID,Audio PID setting
OSD parameter
Subtitle	Supports up to 300 characters
	Support display vertical area setting
	Support display vertical area setting
	Support font color, background color and transparency settings
	Support OSD subtitle display time and interval settings
Image	Supports horizontal and vertical display locale settings
	Support OSD image display time and interval settings
	Support OSD image display time and interval settings
Device Management Parameters
Port	1 100M RJ45 port
Device management method	Local web page management Remote cloud management
Physical parameters
Equipment size	486(W)366(D)43.8(H)mm
Package Size	535(L)430(W)120(H)mm
Working	-10℃-45℃、40%-70%
Weight	Net weight: 4.77kg; Gross weight: 6.08kg
Host power parameters
Input voltage range	AC90-264V
Rated frequency	AC90-264V
Maximum operating power	60W
