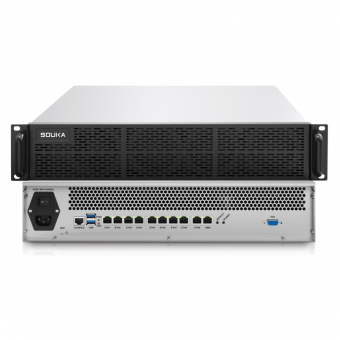

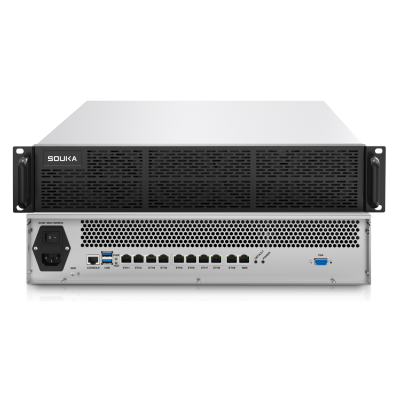

IP to Analog Modulator with NTSC and PAL Output

SKD1709B is a high-density IP to analog RF platform that carry 32/48/64 any channels in a 2U box. Browser based user interface facilitate system setup and maintenance efficiency. This outstanding headend system consumes much less power than other competitors, eventually reduce operating cost and extend life cycle.

Brand:
SOUKA
Item NO.:
SKD1790B
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black

Inquiry now

Product Detail

SKD1709B

IP to 32/48/64CHs Analog Agile Modulator

FEATURES

1. System provides 4 GE ports for both MPTS and SPTS video streams

2. Compact 2RU design with 5 cooling fans and dustproof screen

3. Receive up to 256 IP streams and output up to 32/48/64 channels in NTSC or PAL standard

4. Easy configuration and software upgrade by built-in Web UI

5. Optional function on teletext and overlay

6. Support BISS decryption as an option

SPECIFICATION

GE INPUT
Input Connector	4x RJ45
Transport Protocol	UDP, RTP
Addressing	Unicast, Multicast
MPEG Transport	SPTS, MPTS
TS DECODING
Video Resolutions	Up to 1080P
Video Form	MPEG1/2/4; H.264; H.265; AVS; AVS+; VC1
Audio Form	MPEG-1 Layer I/II/III; WMA, AAC,AC3
MAX decoding stream	32/48/64 channels
Additional capabilities	Teletext; BISS decrypt
Aspect Ratio Control	4:3(Letter & Box); 16:9
RF OUTPUT
Connector	F female connector
Number of RF channels	Max 64,Fully agile modulated channels
Supported Standard	NTSC, PAL BG/DI/DK
STD,HRC and IRC	Supported
Output Frequency	48 ~ 860 MHz
Out-band Rejection	≥ 60dB
Flatness	-2dB per carrier
Return Loss	12 dB (min)
Differential Gain	≤ 5%
Group Delay Response	≤ 100nS
2K Factor	≤ 2%
Output Level	≥ 53dBmV combined*
Adjust Range	20dB Per 32CHs
Adjust Range	10dB Per CH
Audio Output Format	MONO
Audio Level Adjust Range	0 ~ 100 %
RF Test Point	-20 dB Relative to output
GENERAL
Management	NMS
Language	English, Spanish
Power Supply	AC 90 ~ 264 V
Consumption	<240 W
Weight	8.5 KG
Dimension	48443589 (MM)

SYSTEM MAP
