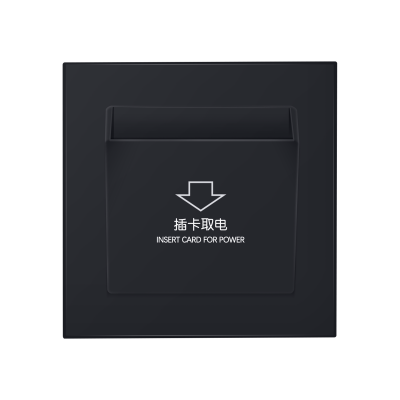

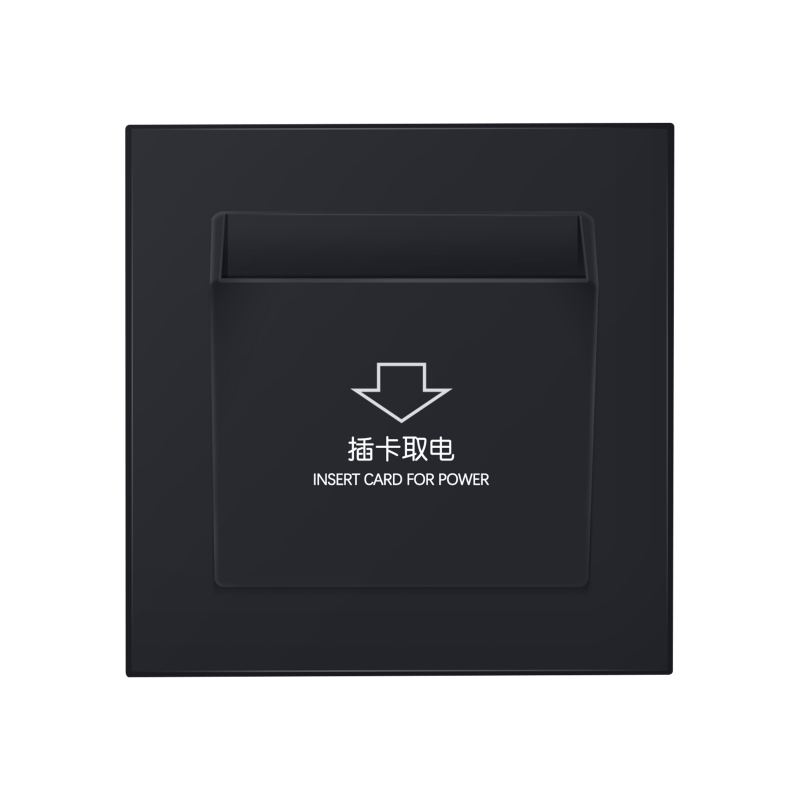

SK-CP021 Key Card Switch

The SK-CP021 Card-Operated Power Switch utilizes high-frequency 13.56MHz Radio Frequency Identification(RFID) technology. It supports an RS485 communication interface and dry contact output. It works in conjunction with the Room Control Unit (RCU) to manage power usage within the guest room.

Brand:
SOUKA
Item NO.:
SK-CP021
Product Origin:
China
Color:
Optional
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

SK-CP021 Key Card Switch

1. Supports communication interface: RS485.

2. Supports dry contact output.

3. Employs high-frequency 13.56MHz RFID technology.

4. Standard 86-type box installation with a tool-free mounting bracket, ensuring factory-quality integrity.

5. Built-in hardware watchdog circuit to prevent crashes and ensure stable, reliable operation.

Basic Parameters
Operating Power Supply	DC 12V
Current Consumption	< 200mA
Communication Interface	Standard RS485 Interface
Output Interface	1 Dry Contact Output
Baud Rate	9600bps
Effective Card Reading Distance	8 ~ 10cm
Supported Protocol	ISO/IEC 14443 Type A/Type B Protocol
Operating Frequency	13.56MHz
Physical Parameters
Housing Dimensions	Standard 86-type Switch Panel Size，adapt to the standard panel hole openings
Operating Temp. & Humidity	-10℃-45℃、40%-70%
Storage Temp. & Humidity	-40℃-70℃、40%-95%
Installation Method	Recessed (Embedded in Wall)
