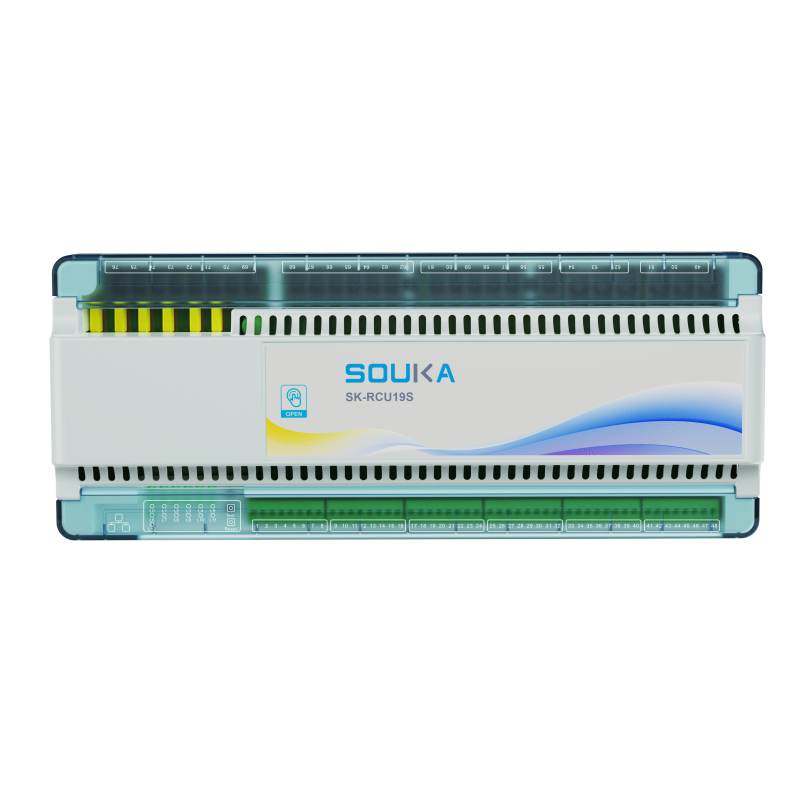

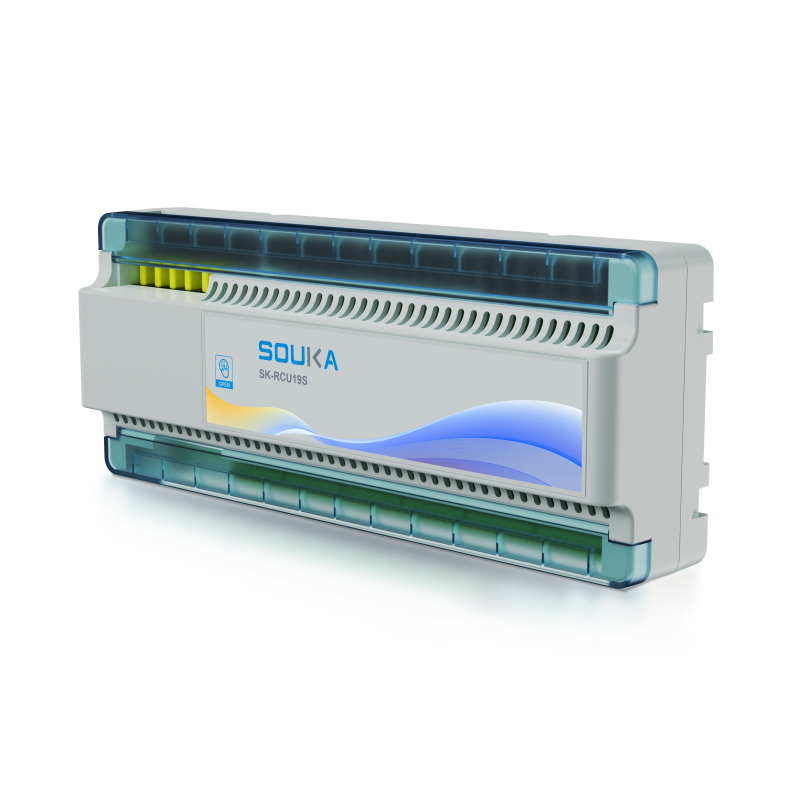

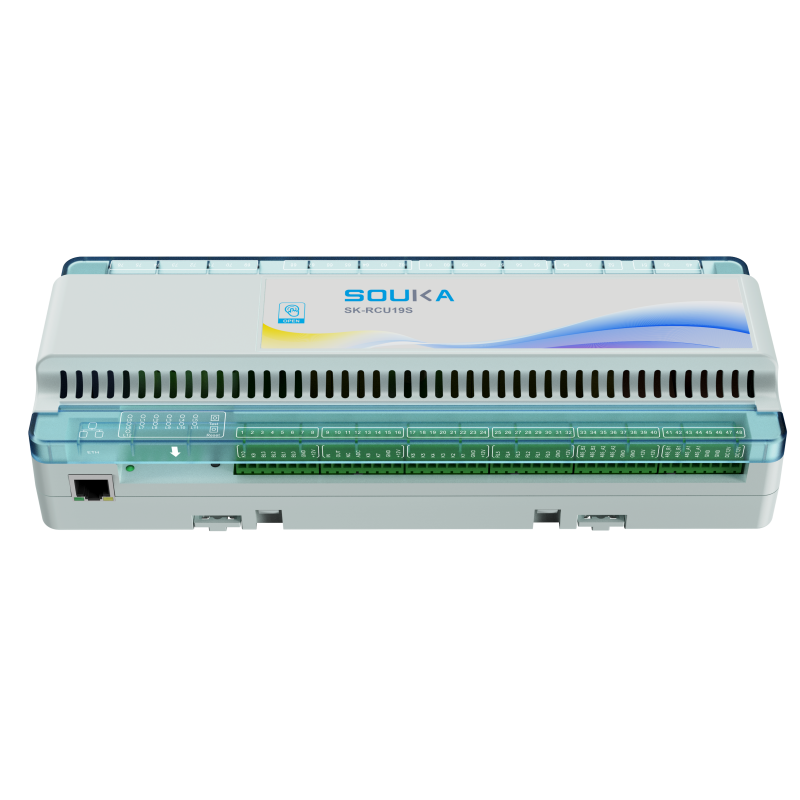

SK-RCU19S Dimming-Type Room Control Unit (RCU)

Functions and interface parameters

Main Board Power Supply

DC 12V 3A (for RCU host and external switch panels)

Dimming power supply

DC voltage 24V

Power rating must be matched according to actual site conditions, with a minimum requirement of 400W.

Ethernet Port

1 x 100M RJ45 Port

TCP protocol for network connection

RS485 Bus

2 channels for internal room communication

High-Power Circuits

11channels 220V/10Ahigh-power circuits

2 channels 220V/30A AC output

Low-Power Circuits

4 channels of 4A low-voltage PWM dimming (100W/24V per channel)

2 channels of 8A low-voltage PWM high-power dimming (240W/24V per channel)

Dry Contact Input

1 channel dry contact input

IO Output

10 channels low-voltage IO output

IO Input

10 channels low-voltage IO input.

Expansion Capability

Supports expansion with 6 additional high-power circuits and various dimming modules.

Supports expansion with 8 additional low-voltage dry contact points.

Supported Peripherals

485-based devices such as thermostats, IR blasters, switches, motors, smart control panels, smart voice assistants, etc.

Can support up to 128 switches, compatible with 485 switches and dry contact switches operating within the same system.

Management Functions

Room Console: Centrally monitors basic room information (room number, status, type, AC mode, service info, messages), main unit status, and other devices; enables remote control.

Control Overview: Real-time status check of each RCU, including lights and AC.

Room Type Management: Create and edit room types, manage floor plans and device naming, configure the smart control panel interface.

Room Management: Manage room creation, grouping, and centralized control of bound devices.

Guest Room Management: Batch processing of room parameter settings (mainboard, room type, IP/MAC address, etc.); configure room status, keycard delay, seasonal mode, etc. Supports import/export. Real-time device control based on room type. Preset AC modes based on room status, set scene modes by room type, and assign them to specific rooms.

Doorplate Management: Manage doorplate devices, support import/export, batch upgrades, and upgrade package management. Supports custom doorplates, setting display content, recognition duration, and volume. Register guest info, view information and door opening records.

Media Asset Management: Upload and manage multimedia resources with flexible storage path adjustment.

System Configuration: Supports cloud data backup. View energy consumption analysis, operation logs, service events, RCU online/offline logs, RS485 device online/offline logs. Configure whether the doorplate captures an image when someone rings the bell and displays a prompt on the in-room TV or smart control panel. Features include host search function, control restoration package management, and linked device settings.

Physical Parameters Specifications

Chassis Dimensions

287*117*68mm

Operating Temp./Humidity

-10℃-45℃、40%-70%

Storage Temp./Humidity

-40℃-70℃、40%-95%
