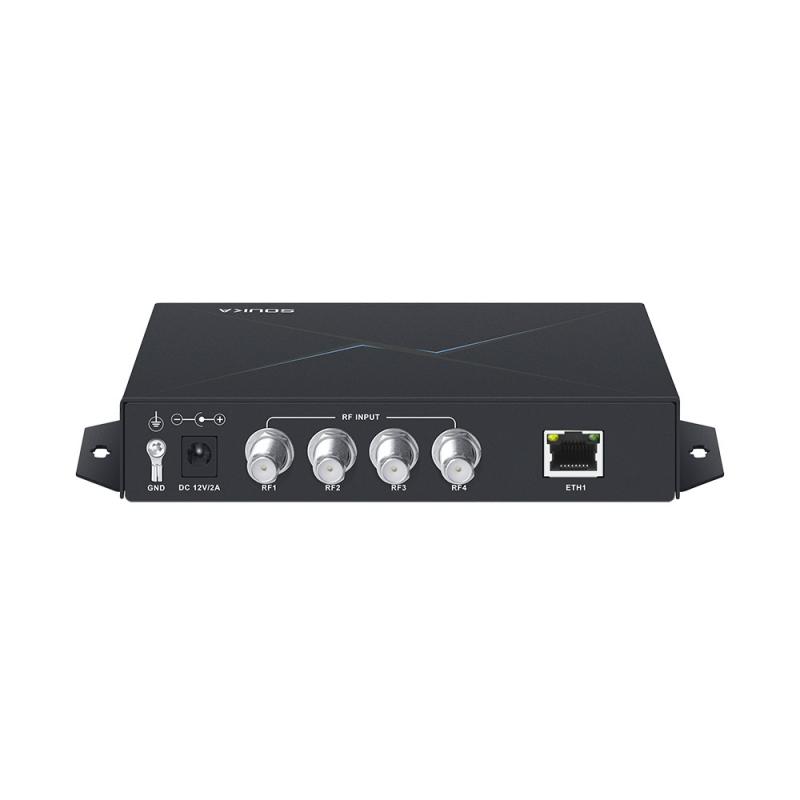

SOUKA SKD2170 4-Channel DVB-T Signal Mini Receiver RF to IP

SKD2170 is a mini 4-channel DVB-T signals receiver which developed by our company. The product supports 4 channels of DVB-T signals input and 2 channels of Gigabit Ethernet port IP output. It is perfect for hotels, hospitals, entertainment venues, home TV system and other digital CATV headend systems.
  • Brand:

    SOUKA
  • Order(MOQ):

    1
  • Product Detail

Features

Support 4 DVB-T signals input of independent high frequency tuner

Support 2 Gigabit or 100M self-adaptive IP output

Support SPTS and MPTS output

Easy configuration and software upgrade by built-in Web UI



Specification

Parameters

DVB-T

Input Channels

4



Intermediate Frequency

50~870MHz



Receiving Sensitivity

-70dBm

IP Output

Network Interface

2 Gigabit or 100M self-adaptive IP output



Protocol

UDP/RTP



IP Stream

SPTS,MPTS

Power Supply

Input Voltage

12V 1.5A Power adaptor



Max. Current

1A

Physical Parameters

Dimension

180*122*30mm

Operating Temperature/Humidity

-10℃~45℃,40%~70%

Storage Temperature/Humidity

-40℃~70℃,40%~95%
