SOUKA VOD IPTV Streaming Server with 100 HD Channels, 1000 Users for Hotel IPTV Solution

IPTV Streaming Server
IPTV Streaming Server IPTV Streaming Server IPTV Streaming Server IPTV Streaming Server

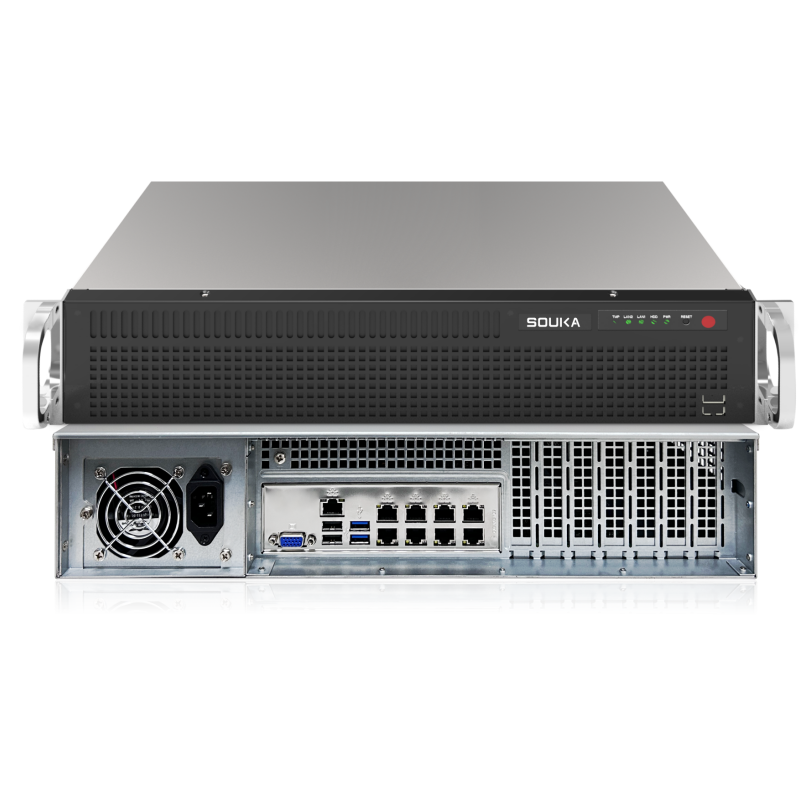

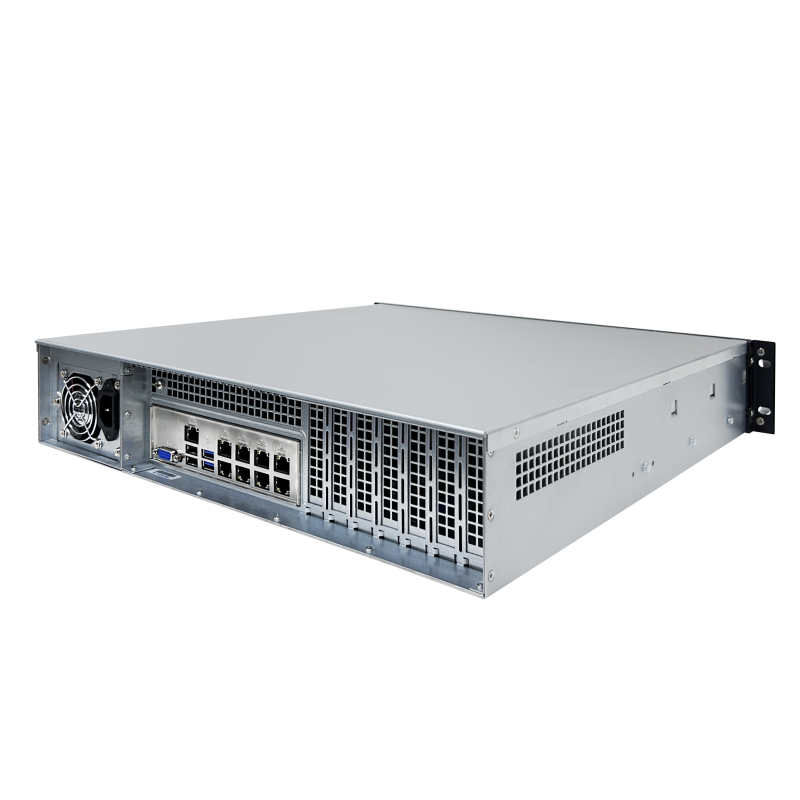

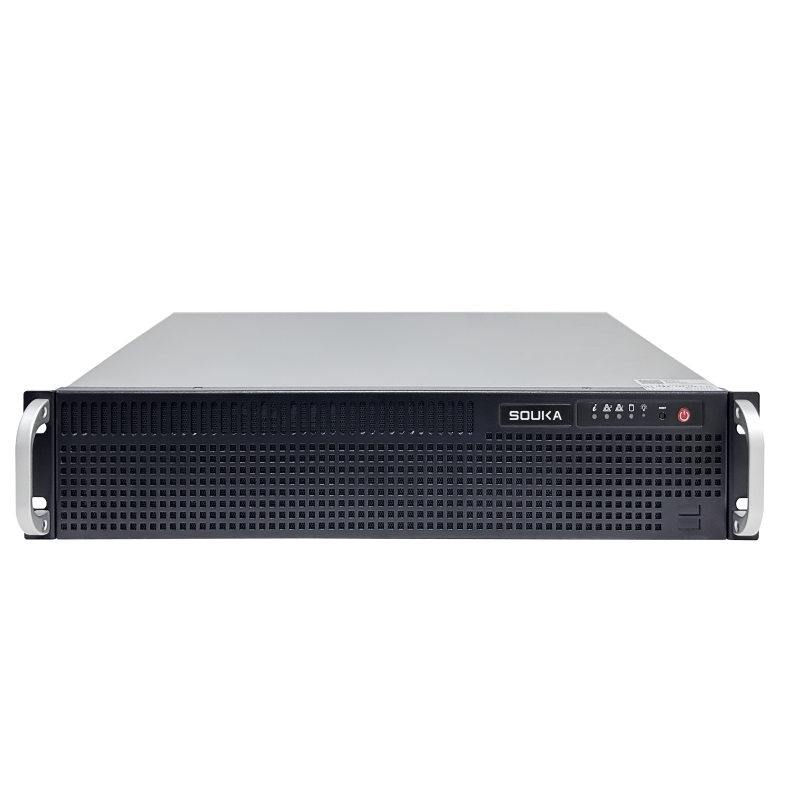

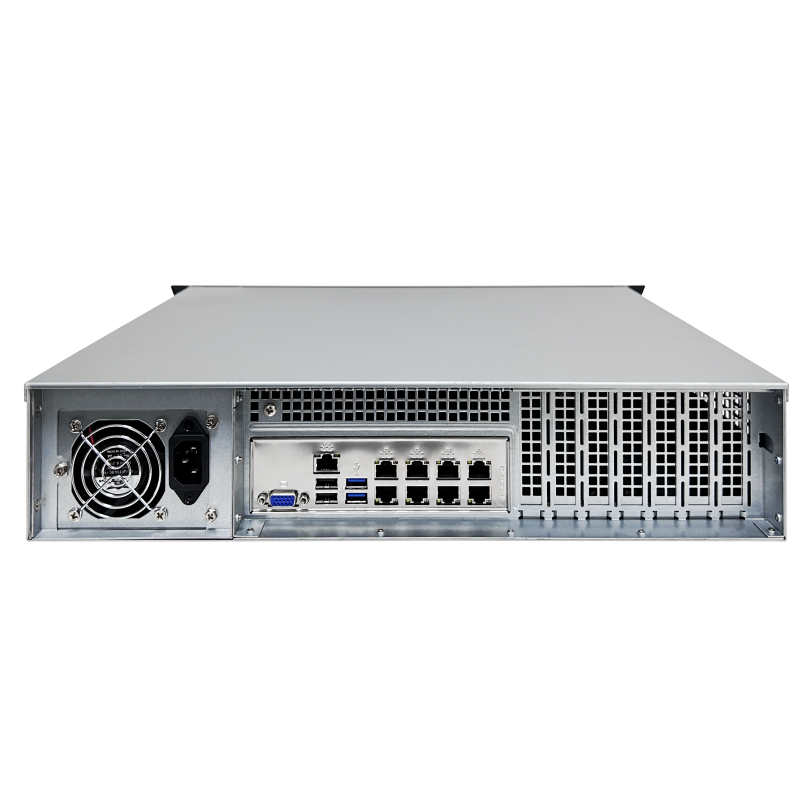

SOUKA VOD IPTV Streaming Server with 100 HD Channels, 1000 Users for Hotel IPTV Solution

SKD3308M is a headend device for large scale commercial IPTV or digital TV systems suitable for business hotels, clubs, hospitals, bathhouses, schools, leisure clubs and other places (supporting 1000 or less terminals, 100HD/200SD channels). This is a IPTV server product with high integration, high cost performance and high configuration (default 32G, expandable to 128G memory). It can support multiple 100/1000M input ports, support mainstream protocol encapsulation format conversion and streaming media publishing, and can flexibly adapt to a variety of systems. It supports cloud network management, live channel, ordering service, mall, information release, music, hotel service and other functions, and can integrate with PMS system of hotel.

  • Brand:

    SOUKA

  • Item NO.:

    SKD3308M

  • Order(MOQ):

    1

  • Payment:

    EX-WORK

  • Product Origin:

    China

  • Color:

    Black

  • Shipping Port:

    Shenzhen

  • Lead Time：

    3 working days
Inquiry now

  • Product Detail

SKD3308M

SOUKA VOD IPTV Streaming Server with 100 HD Channels, 1000 Users for Hotel IPTV Solution

Features:

1.Protocol conversion among UDP/RTP/RTSP/HTTP/DASH/RTMP/HLS/SRT.

2.supports 100HD/200SD, 128G SSD, 32G RAM memory, and additional 4T hard dish.

3.Supports cloud network management, support program PSI/SI information editing and MPTS/SPTS parsing.

4.Support set-top box Ul interface customization.

5.Support user management software and terminal online software upgrade.

6.Can integrate with PMS system for hotel.

7.Support end-user management, channel program list management.

8.Supports live video, playback, video stream processing, and advertising (video,text, image) overlay, VOD function,etc.

Specifications:

Parameters
Input Connector RJ45,100/1000M Auto-Negotiate
Input Protocols
UDP/RTP/RTSP/HTTP/DASH/RTMP/HLS/SRT
Network Card  8*Inteli210/i2111000M/2*Inteli3501000M
CPU Xeon serie
SSD
128G(default)
Additional hard dish  4T
RAM Memory

unbuffered (UDIMM) DDR4 (288-pin) EcC

up to 2666MHz

Supply Voltage 90-264VAC
Packing Size
55(L)*50(W)*20(H)cm
Dimension 48.4(W)*47.8(D)*8.86(H)cm
Weight
G.W: 9.66kg, N.W:7.2kg
Language  中文/ English
Maximum Current
8500mA
Logo SOUKA/White label

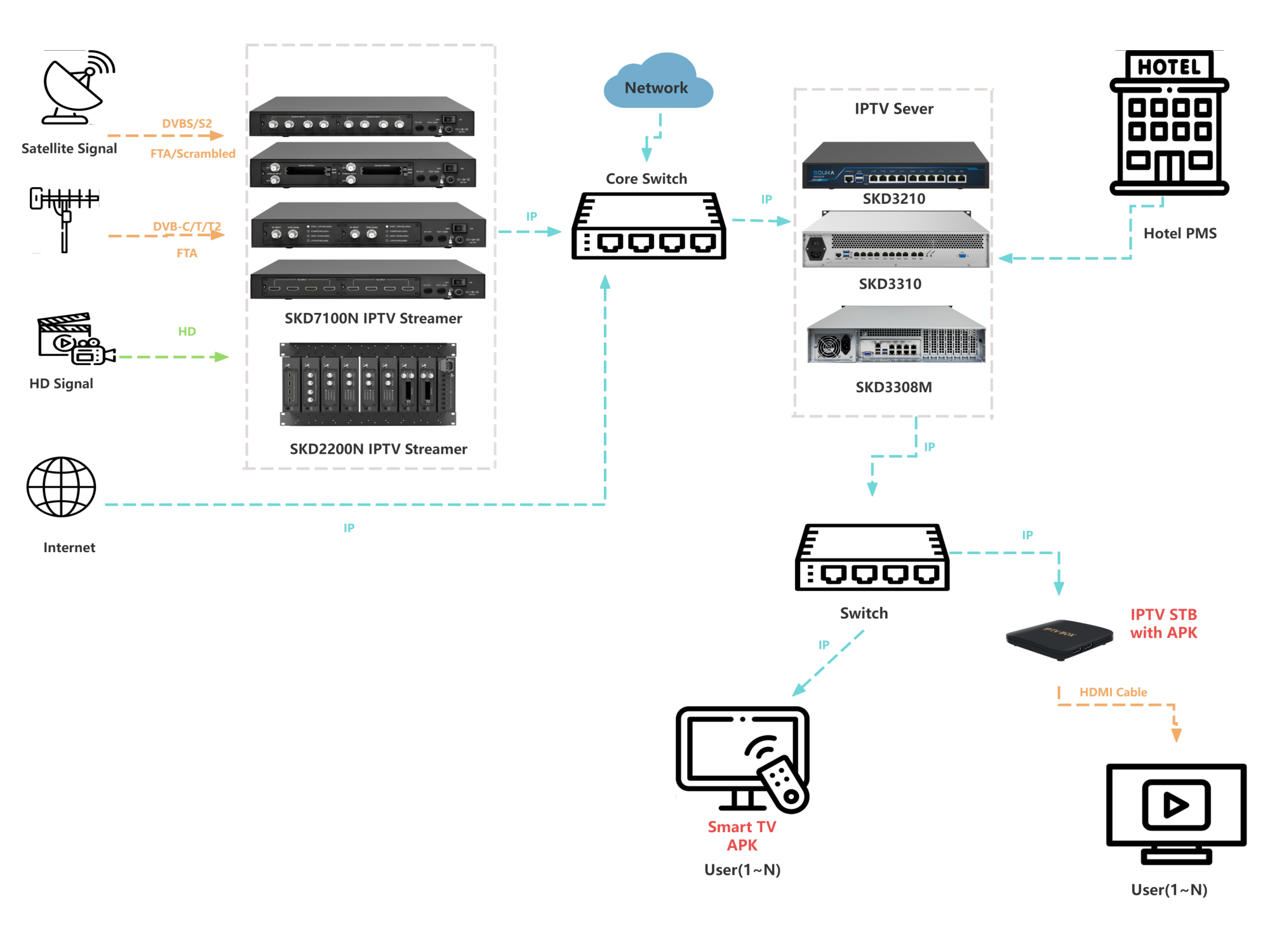

Principle Chart:
