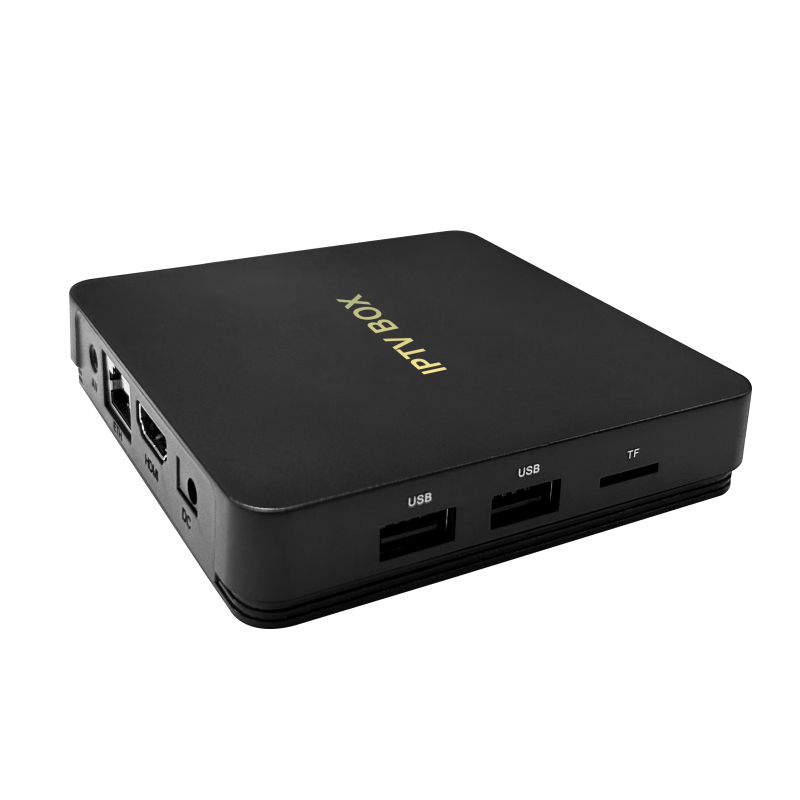

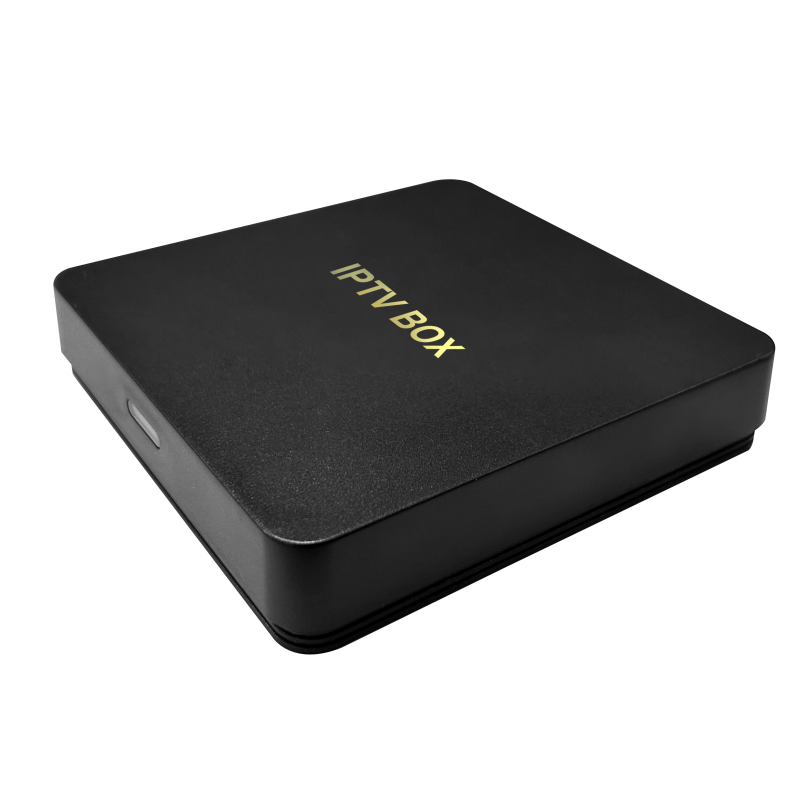

SKD8315 IPTV Android Set Top Box

Specification

CPU

Allwinner H313

GPU

G31 OPenGL3.2

RAM

DDR 2GB

ROM

EMMC 8GB

System

Android 10.0

WIFI

2.4G/5.8G IEEE 802.11 b/g/n

Bluetooth

4.0

1*HDMI port

HD/4K*2K UHD Output, HD2.0

1*internet port

Standard Ethernet 10/100M RJ-45

1*AV port

480i/576i standard definition output

2*USB port

1* USB Host Port ,1*USB Device

1*TF card port

Support 4GB/8GB/16GB/32GB/64GB

1*power port

DC 12V/1A，LED indicator，Working ：Blue; Standby：Red

Video

H.264+1 Main10@L5.1 decoder up to 4K@60fps

VP9 Profile 2 decoder up to 4K@30fps

AVS2 JiZhun 10 bits decoder up to 4K@30fps

H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps

Multi-format 1080p@60fps video playback format，include H.264 BP/MP/HP、H.263 BP、VP8、MPEG-1 MP/HL、MPEG-2 MP/HL、MPEG-4 SP/ASP@L5、 AVS/AVS、WMV9/VC1

H.264 BP/MP/HP decoder up to 1080p@60fps

1080p@60fps has JPEG Snapshot performance

Audio

Supports 1 audio output interface (differential LINEOUTP/N or single-ended LINEOUTL/LINEOUTR)

1 Audio HUB, supports internal mixing function

Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier)

Support left-aligned, right-aligned, standard I2S mode, PCM mode, TDM mode

I2S mode supports 8 channels, 32-bit/192kbit sampling rate

I2S and TDM modes support up to 16 channels and 32-bit/96kbit sampling rate

1 OWA OUT interface, supports 16/20/24-bit input and output

Integrated digital microphone (DMIC), supports up to 8 digital PDM microphones

Image Format

HD JPEG、BMP、GIF、PNG、TIF

System language

The default language is Simplified Chinese, and you can set multiple languages such as English, German, Portuguese, and Spanish.

Other

Support third-party APP installation;

support 2.4G wireless keyboard and mouse

Packaging and accessories

1、 Ordinary packaging box*1

2、 Host*1

3、 Power supply*1

4、 HD high-definition cable*1

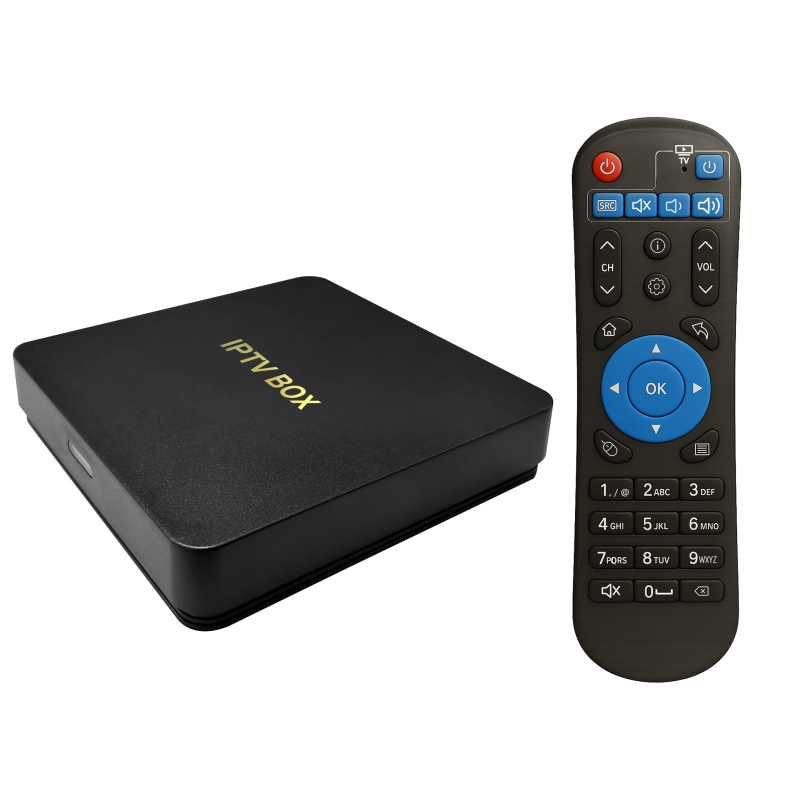

5、 Infrared remote control*1

6、 Instruction manual*1
