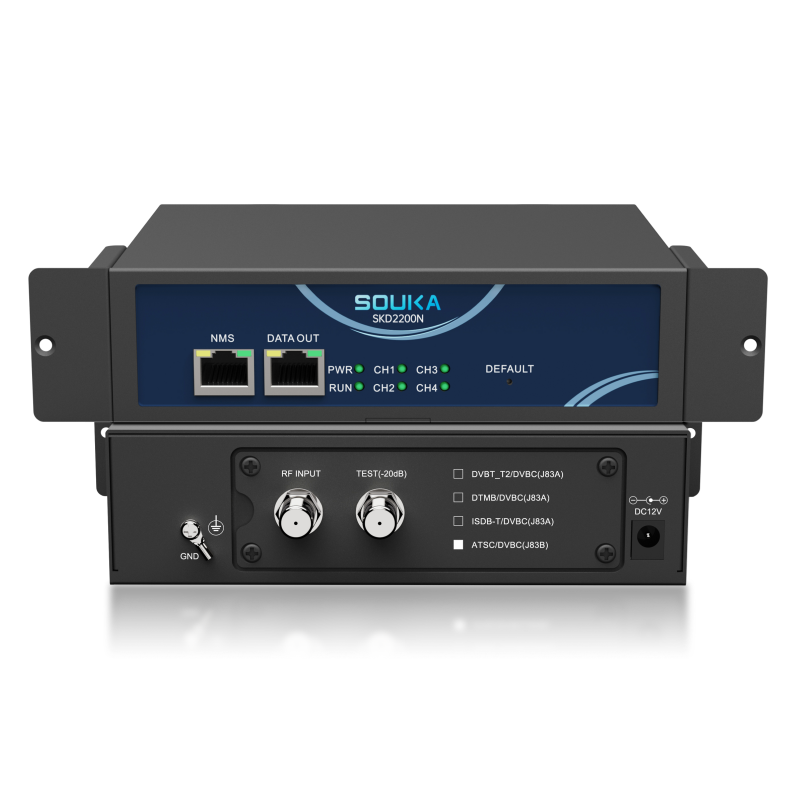

4 FTA ISDBT to IP Gateway for IPTV project

SKD2270 supports 4 ATSC/DVBC(J838) input to IP output in UDP/RTP. The installation method is flexible and can be installed in rack, wall-mounted or desktop. Device parameters can be configured through local network operations. The WEB page is beautiful, easy to understand, and easy to operate. It has intelligent functions such as parameter batch import, export. It is a configurable, customized, highly integrated, and cost-effective IPTV headend signal comprehensive processing equipment.

Brand:
SOUKA
Item NO.:
SKD2220
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

SKD2220

4 FTA ISDBT to IP Gateway for IPTV project

Features:

1. Support 4 DVB-C(J83A)/DVB-T/T2 input
2. Support UDP/RTP protocol output, support SPTS/MPTS stream processing
3. Supports optional MPTS or SPTS output. For MPTS, the maximum supported is 4 IP addresses; for SPTS, the maximum supported is 128 IP addresses.
4. 1 Gigabit port and 1 management port
5. Operated through PC (WEB)

Specifications:

Input module parameter

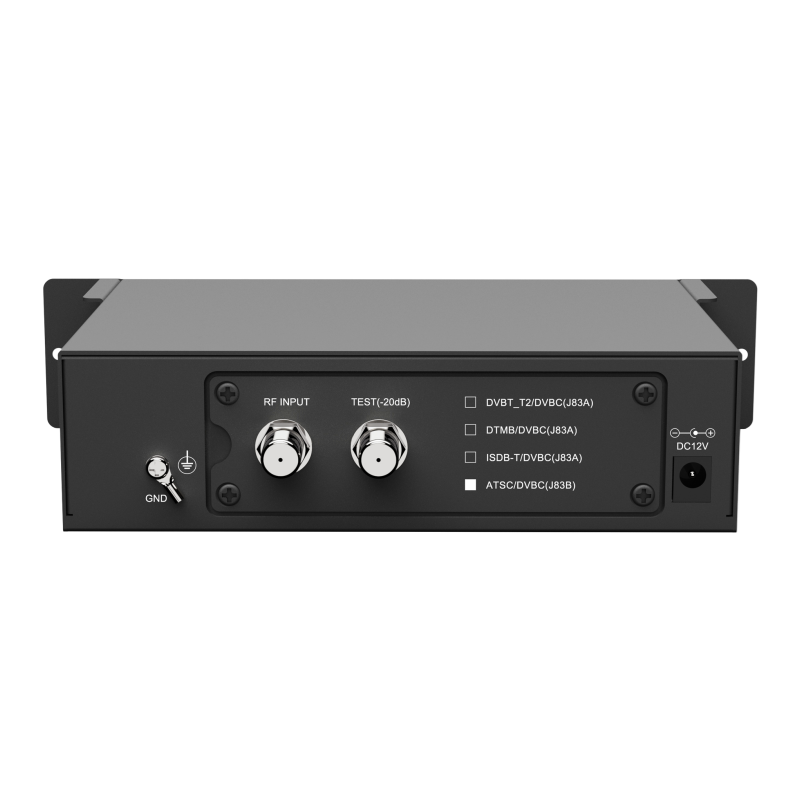

Input connector	F female 1 RF input with 4 air signals(ATSC, DVB-C J.83B) 1 RF -20dB test port
Input impedance	75Ω
Input frequency	48-870MHz，ATSC and DVBC(J.83B) full frequency band, supports channel and frequency tuning methods
Receive level range	40dBuV ～ 90dBuV
Receive standards	ATSC constellation：8VSB DVBC(J.83B), constellation：64QAM/256QAM
Maximum bit rate received	32.28Mbps(8VSB) 30.34Mbps(64QAM) 42.88Mbps(256QAM)
IP output parameters
Port	1 Gigabit RJ45 port
IP protocols	Supports UDP/RTP protocols output，support 128 IP address
Stream format	Support SPTS/MPTS stream processing
Device management parameters
Port	1 megabit RJ45 port
Device management method	Local web management Remote cloud management
Base unit power parameter
Power jack	DC 5.5mm×2.5mm
Input voltage	DC12V
Input Current	Maximum operating current 2A (current will vary with different input modules and operating states)
Physical parameters
Equipment size	205(W)135(D)43.8(H)mm
Package Size	268(L)167(W)93(H)mm
Working	-10℃-45℃、40%-70%

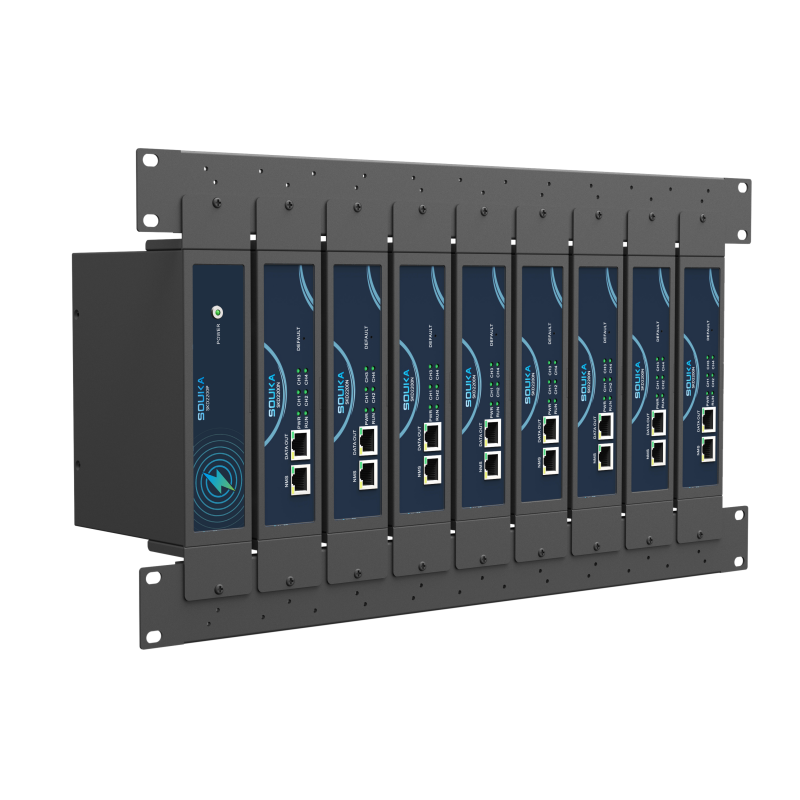

Mounting methods	Wall-mounted Mounted in chassis
Weight	Net weight: 0.9kg; Gross weight: 1.1kg
Power adapter parameters
Rated input voltage	90V—264Vac
Rated frequency	50/60Hz
Output voltage	+12V
Current	2000mA
