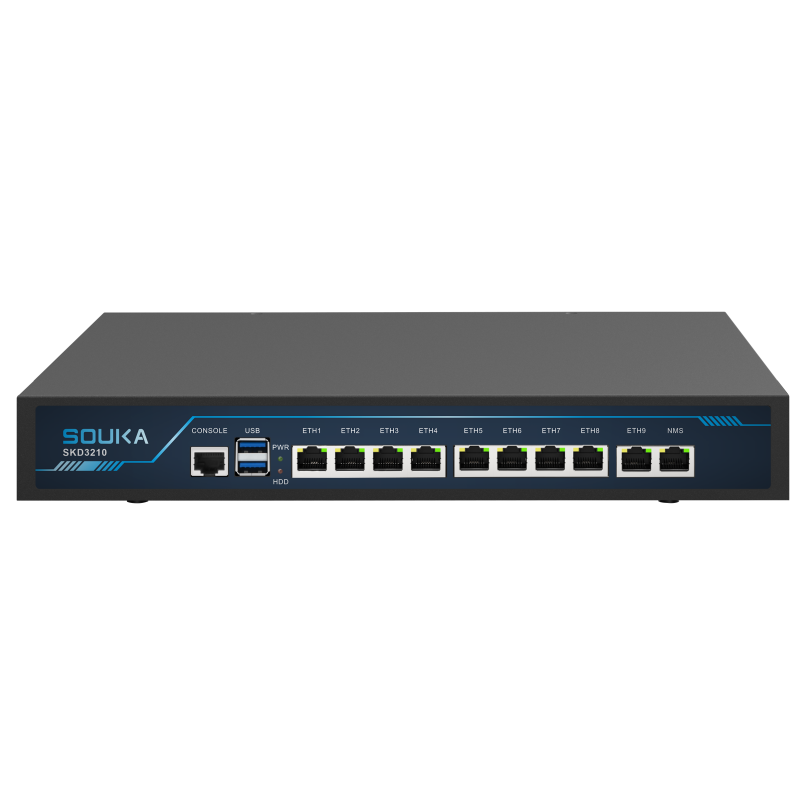

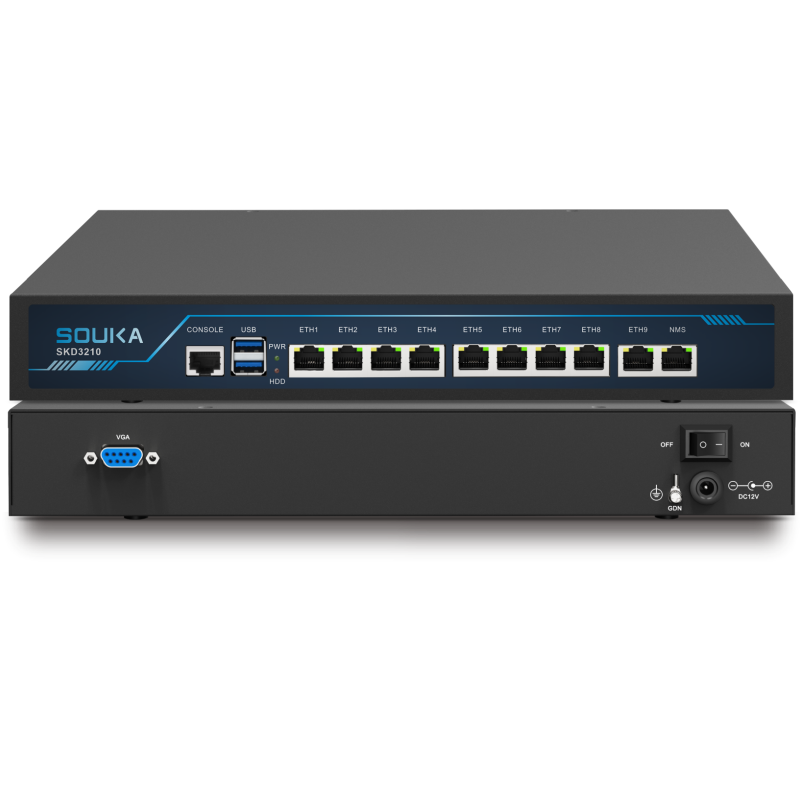

SOUKA IPTV Server for Hotels-200 Users, 50HD Channels, Multi-Protocol Support, Linux CentOS 7, Compact 1RU Design

The SKD3210 is a compacted size yet powerful IPTV server to manage the IPTV service and Android box. With the our dedicated made software, SKD3210 supports to manage 200 users and 50HD IPTV services through 10 internet data ports. There's a pre-installed PMS for small hotel to input the client's name and display it in the welcome screen. It is a perfect choice for small or medium size hotel to get the best customer satisfaction through.

Brand:
SOUKA
Item NO.:
SKD3210
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

SKD3210

High-Efficiency IPTV Server - 200 User Limit, 50HD Channels, Multi-Protocol Conversion

Features:

1. Convert protocols among UDP/RTP/RTMP/HTTP/HLS and SRT.
2. Customize logo in theme and living channels.
3. Easy channel lineup and group function.

4. Advertisement insertion through picture and video.
5. Automatically search set top box and assign IP accordingly in local network.
6. Remotely software upgrade and user-experience control on STB.
7. Graphic user interface for easy configuration.

Specifications:

IP INPUT & OUTPUT
Input Connector	RJ45,100/1000M Auto-Negotiate
Input Protocols	UDP/RTP/RTMP/HTTP/HLS/SRT
IP Addressing	Unicast and Multicast
IGMP Support	V2 and V3
SYSTEM
CPU	Celeron/Pentium Series
SSD	120G
RAM	16G DDR4 (32G optional)
OS	Linux CentOS 7
GENERAL
Input Voltage	90-264VAC, DC 12V 5A
Rack Space	1RU
Dimension	48244260mm
Weight	Net weight: 2.26kg
Language	中文/ English
Watch Dog	AC90-264V
Maximum operating power	USB Type*1PCS

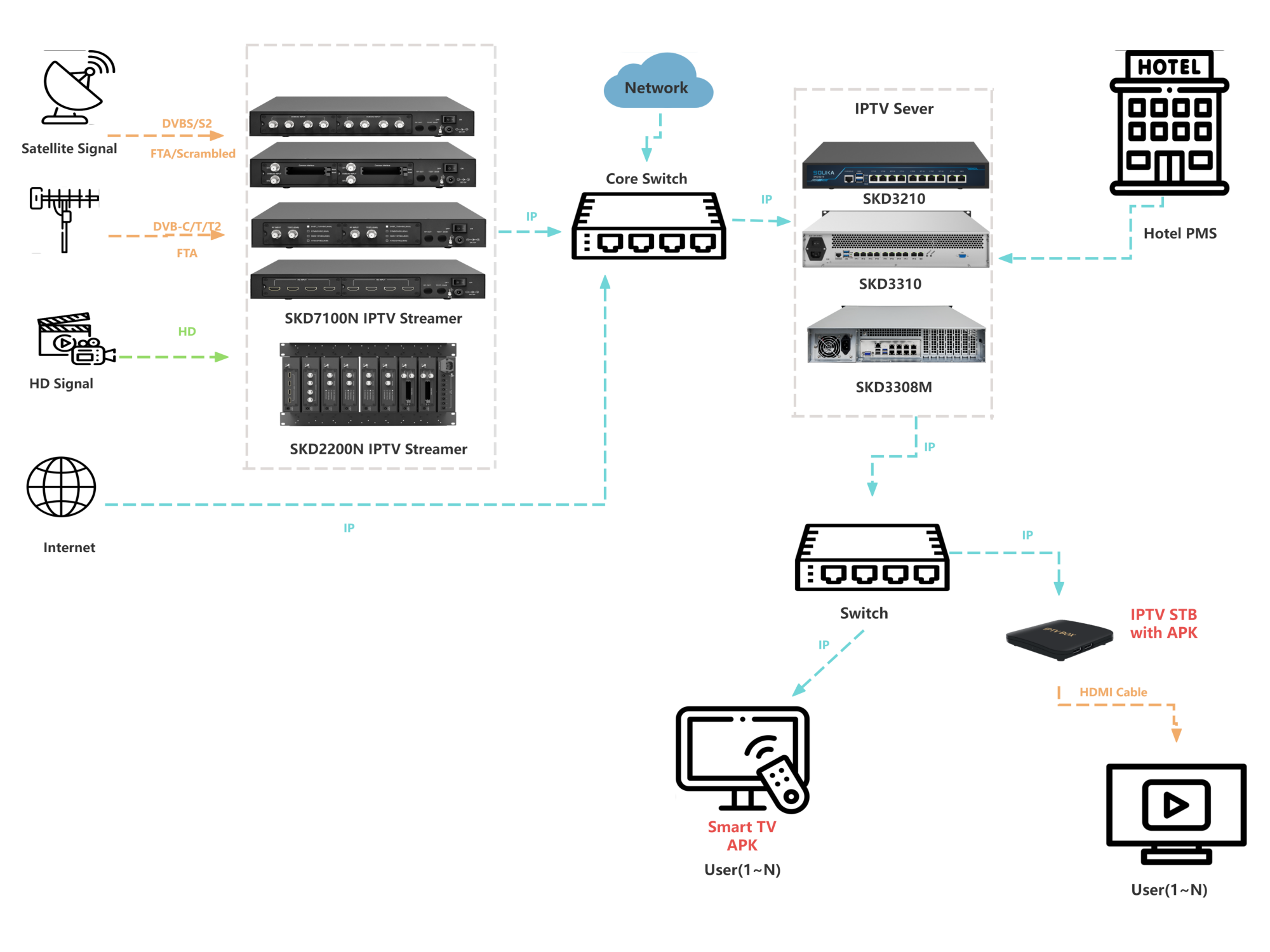

Principle Chart:
