SOUKA Hotel IPTV Solution with 100 HD Channels, 500 Users IPTV Streaming Server with VOD

IPTV Server
IPTV Server IPTV Server IPTV Server

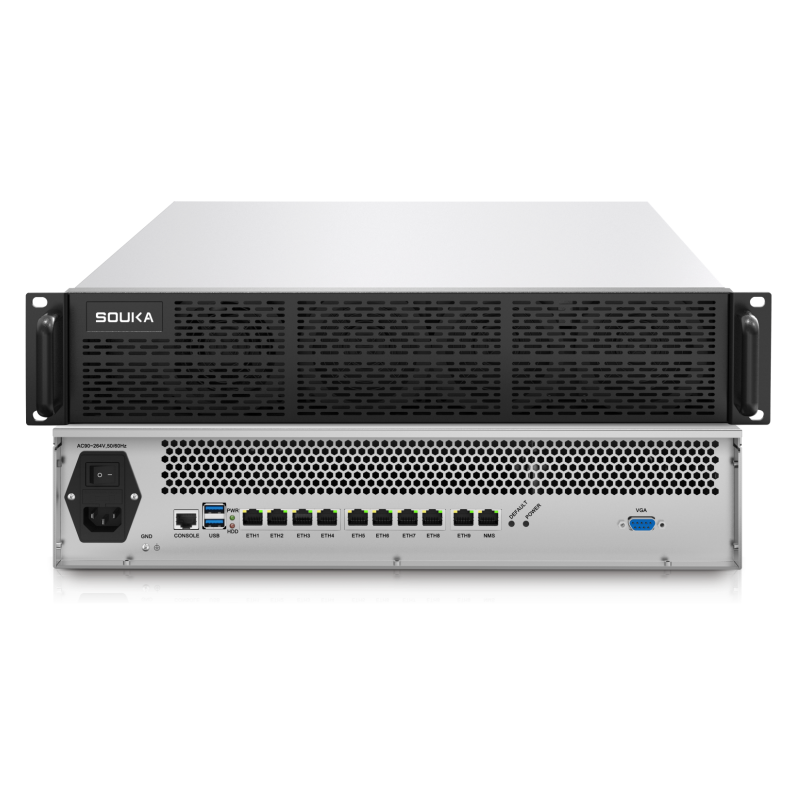

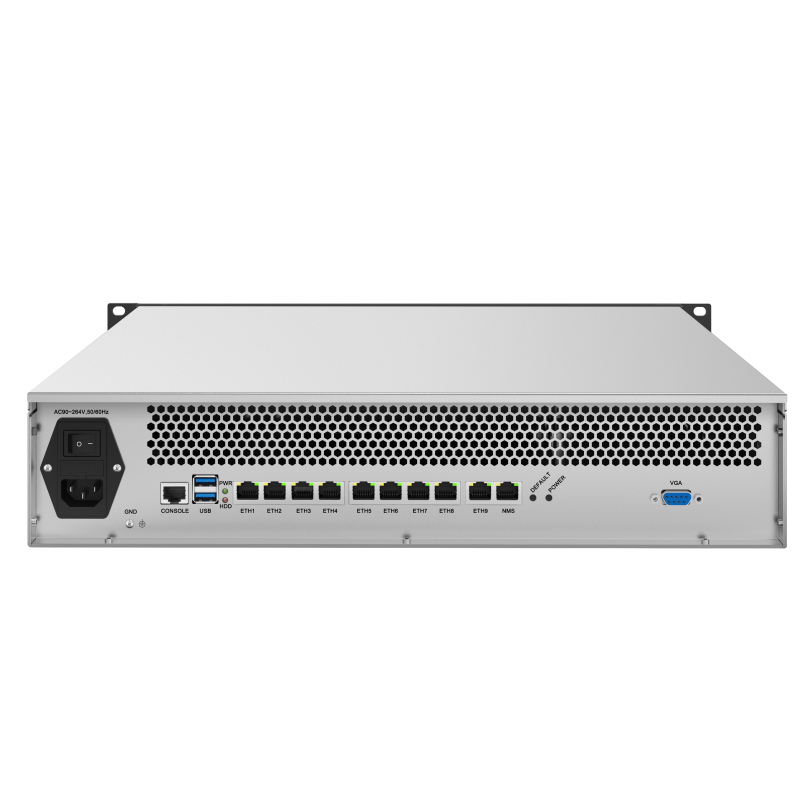

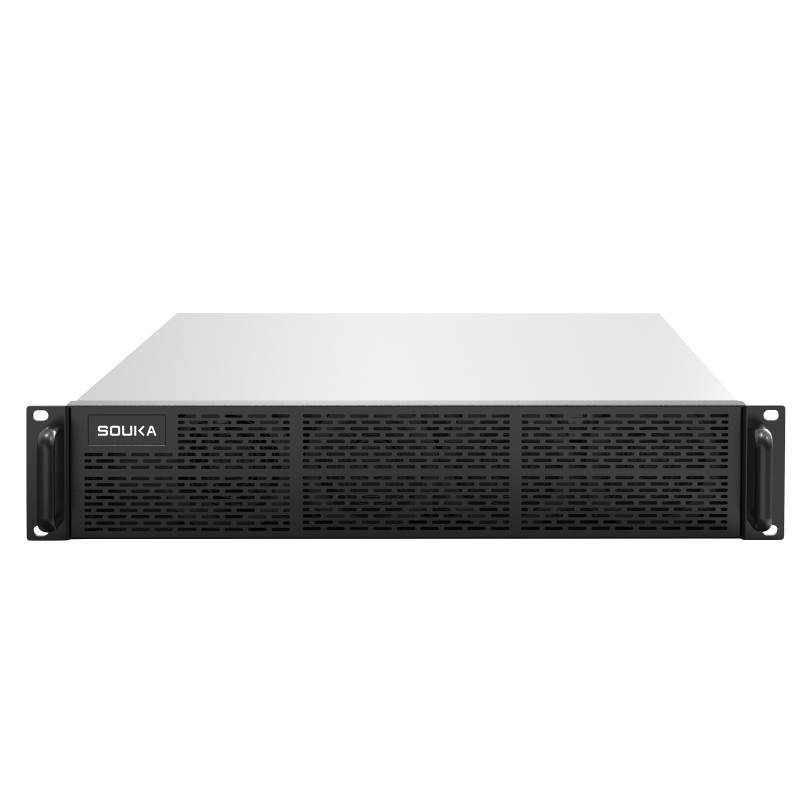

SOUKA Hotel IPTV Solution with 100 HD Channels, 500 Users IPTV Streaming Server with VOD

The SKD3310V is a medium size IPTV server to manage the IPTV service and Android box. With the our dedicated made software, SKD3310V supports to manage 500 users and 100HD IPTV services through 10 internet data ports. With high integration, high cost performance, high configuration features, and the numerous languages, cloud network administration, live channel, VOD, order food service, shopping online, information release and other functions, it can also interact with a hotel's PMS system. Through data port, web-based NMS management is used to control this device.

  • Brand:

    SOUKA

  • Item NO.:

    SKD3310V

  • Order(MOQ):

    1

  • Payment:

    EX-WORK

  • Product Origin:

    China

  • Color:

    Black

  • Shipping Port:

    Shenzhen

  • Lead Time：

    3 working days
Inquiry now

  • Product Detail

SKD3310V

SOUKA IPTV Streaming Server with VOD Function

Features:

1.Protocol conversion among UDP/RTP/RTSP/HTTP/DASH/RTMP/HLS/SRT.

2.supports 100HD/200SD, 120G SSD, 16G RAM memory, and additional 4T hard dish.
3.Supports cloud network management, support program PSI/SI information editing and MPTS/SPTS parsing.

4.Support set-top box Ul interface customization.

5.Support user management software and terminal online software upgrade.
6.Can integrate with PMS system for hotel.

7.Support end-user management, Channel program list management.

8.Supports live video, playback, video stream processing, and advertising (video,text, image) overlay, VOD function,etc.

Specifications:

Parameters
Input Connector RJ45,100/1000M Auto-Negotiate
Input Protocols
UDP/RTP/RTSP/HTTP/DASH/RTMP/HLS/SRT
Network Card  8*Inteli210/i2111000M/2*Inteli3501000M
CPU Celeron/Pentium Series
SSD
120G(default)
Additional hard dish  4T
RAM Memory
 16G(default)-32G DDR4 260PIN SO-DIMM 1.2V
Supply Voltage 90-264VAC
Packing Size
55.5(L)*49.5(W)*18.5(H)cm
Dimension 48.4(W)*47.8(D)*8.86(H)cm
Weight
G.W: 8kg
Language  中文/ English
Maximum Current
8500mA
Logo SOUKA/White label

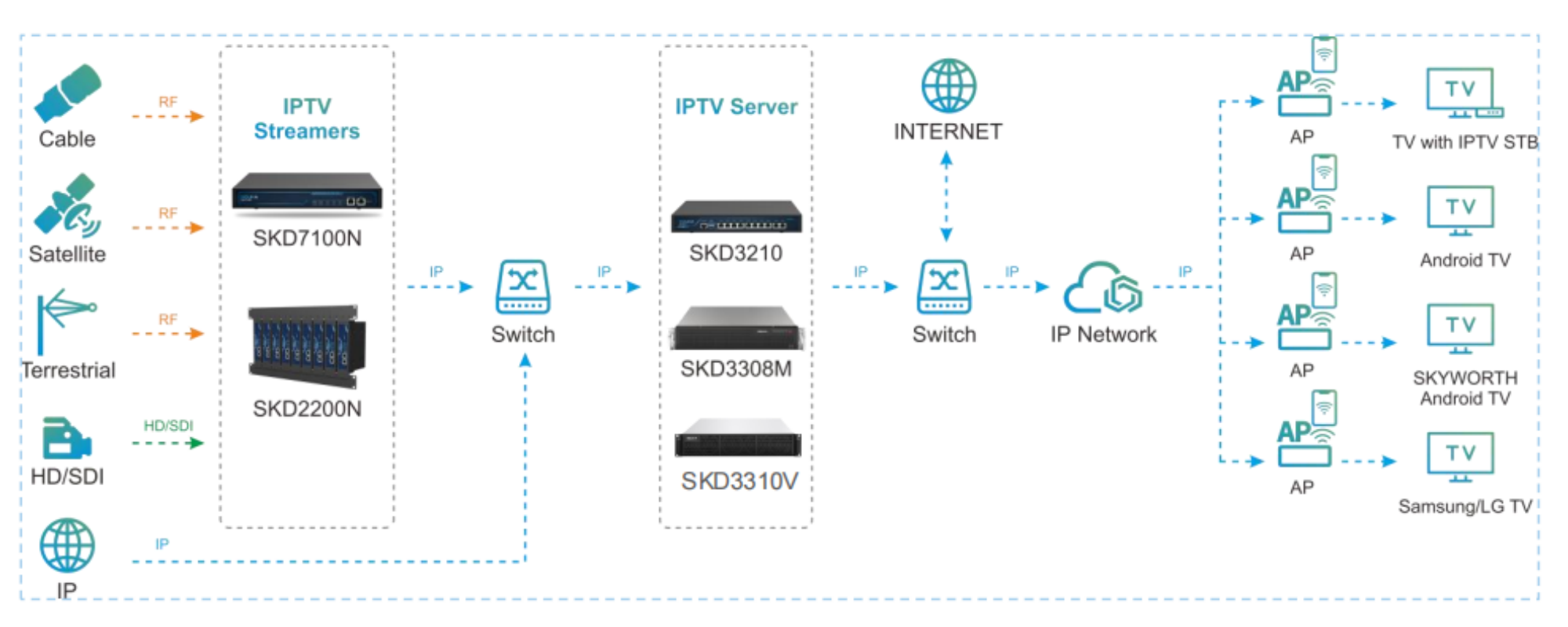

Principle Chart:
