Dual Channel HD Encoder

The SKD2210H is designed to convert the HD signals to IP SPTS with H.264 encoding. Users can put your HD source on a local network and/or internet with it. In this way, users can see the real-time video on the devices like smart phone, tablet, laptop or TV with the free VLC application or by IPTV receivers.

Brand:
SOUKA
Item NO.:
SKD2210H
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

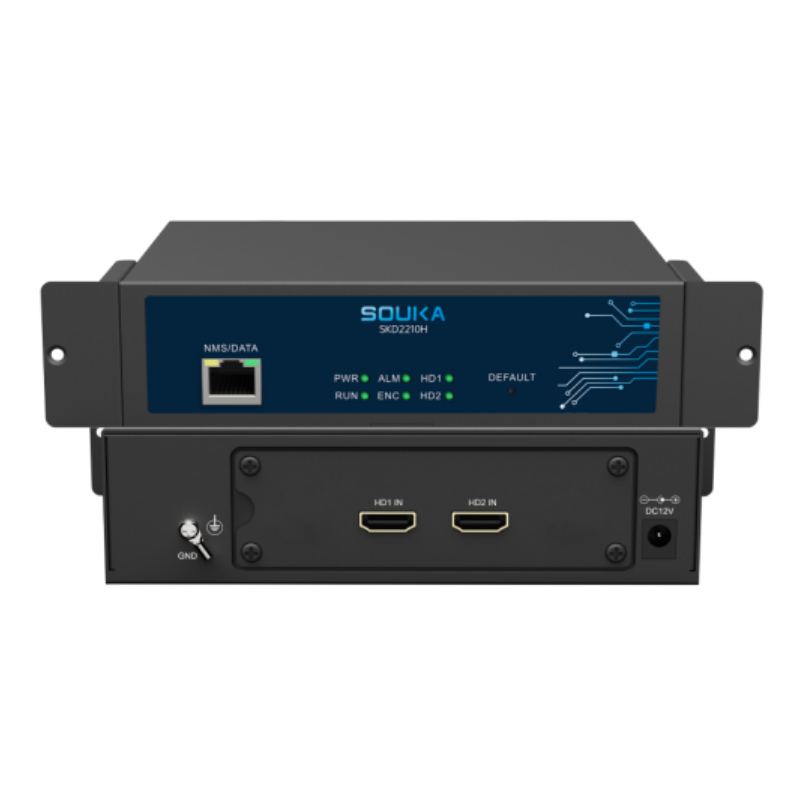

SKD2210H

Professional Dual Channel HD Encoder for IPTV Project

Features:

1.Supports H.264 video encoding and AAC audio encoding.

2.Supports input resolution up to 1080P_60 and output up to 1080P_30.

3.Supports various of protocols including RTSP/RTMP/HTTP/HLS/UDP/RTP/SRT.

4.Capable with customized text and image overlay function, which can be at any position on the screen.

5.Portable and low power consumption makes it 24 hours continuous working available.

6.User friendly WEB UI operation for quick set up.

Specifications:

Input

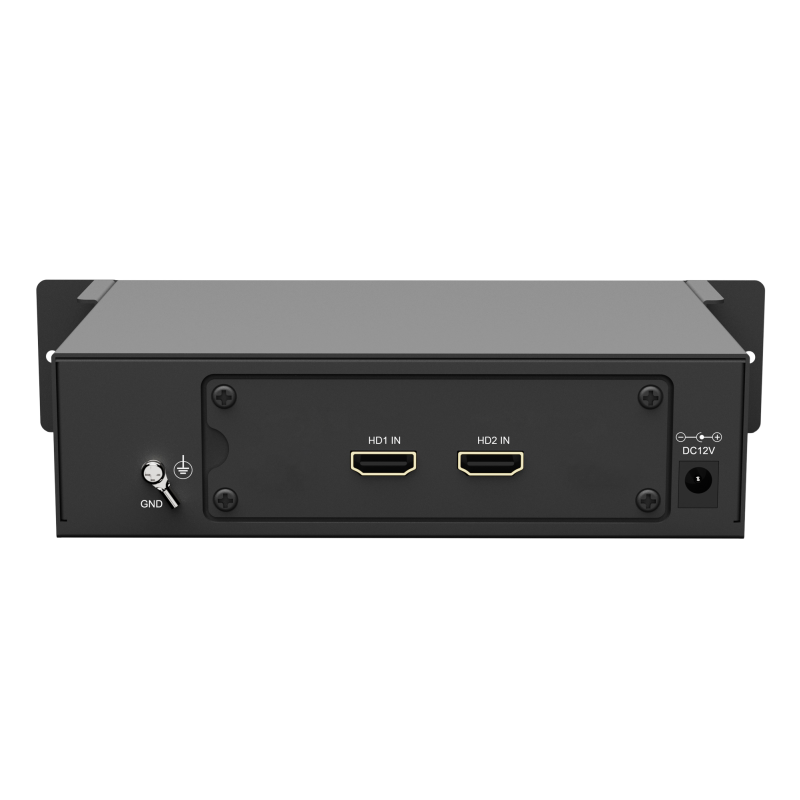

Input connector	HD 1.4 *2
Video	Encoding: H.64
	Input Resolution: 19201080_60P/_50P 19201080_60i/_50i 1280*720_60P/_50P
	Bit Rate: 2 ~ 18 Mbps
	Encoding Latency: 150 ~ 300 ms
	Encoding Latency: 150 ~ 300 ms
Audio	Encoding: AAC
Output
Output Port	RJ45 for both NMS and DATA in 100/1000M
Output Protocol	RTSP/RTMP/HTTP/HLS/UDP/RTP/SRT
Graphic Overlay	User-defined running text and image overlay
Output Stream	2 SPTS
Web Player	Built-in HLS Player
General
Input Voltage	DC 12V 1A
Rack Space	Wall mounted
Dimension (WxHxD)	16012043mm
Net Weight	0.65 KG
Language	中文/ English
