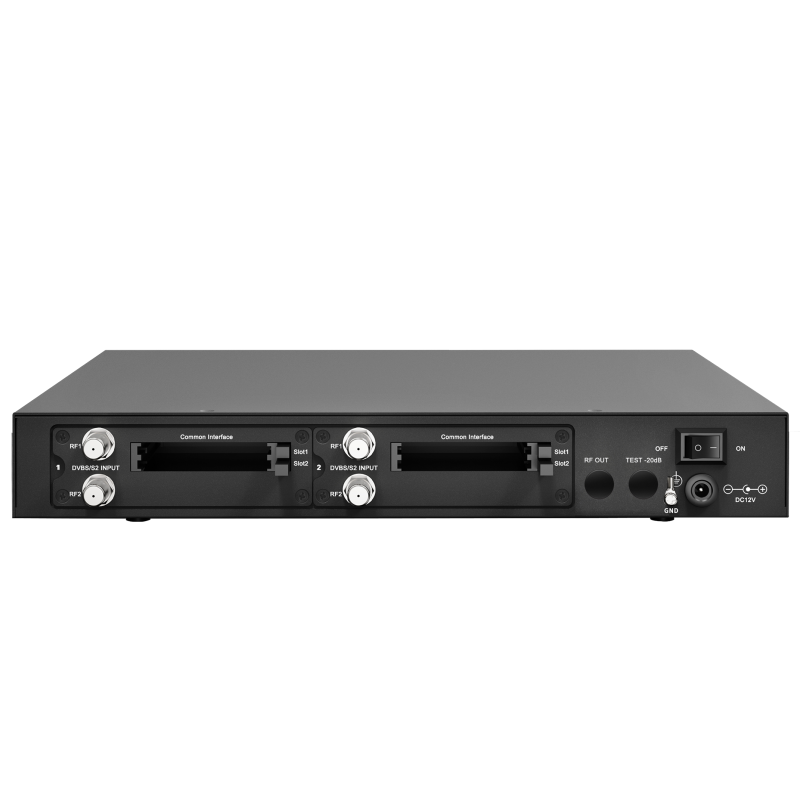

4 DVBS/S2 to IPTV Gateway with 4 CAM Cards

The SKD7150P is a compact DVB-S/S2 to IP Gateway designed for small-scale IPTV systems. It supports 2 input modules with CI slots for satellite signal reception and decryption, and delivers IP output via Gigabit Ethernet in UDP/RTP format (MPTS with 8 IPs or SPTS with 256 IPs). With web-based management and cloud support, it is suitable for hotels, schools, and other commercial applications.

Brand:
SOUKA
Item NO.:
SKD7150P
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

SKD7150P

PCMCIA Satellite Input IP Output Gateway Ci Cam Card Tuner to IP Encoder Streamer

Features:

1. A single device supports up to 2 input modules.

2. Supports 2 or 4 DVBS-S2 input with CI Slot, independent PCMCIA card decryption.
3. Supports PID remapping, PSI/SI information editing and insertion.
4. Supports optional MPTS or SPTS output. For MPTS, the maximum supported is 8 IP addresses; for SPTS, the maximum supported is 256 IP addresses.
5. 1 Gigabit port and 1 management port.
6. Operated through PC (WEB), the device supports cloud management.

Specifications:

SKD7150P Host performance parameters
Size	318(L)260(W)44(H)mm
Installation form	1U 19 inch chassis, Support Desktop, Rack-mounted and wall-mounted.
Working temperature, humidity	-10℃-45℃、40%-70%
Storage temperature and humidity	-40℃-70℃、40%-95%
Power parameters	Supply voltage	DC12V
	Maximum current	7000mA
DVB-S/S2 with CI Slot input module parameter	Total number of slots	2
	Each slot can support 2 CI Slot	2 CAM slots
IP output parameter	IP output connector	1 Gigabit RJ45 network port
	Output format	Supports UDP/RTP protocol output, supports SPTS/MPTS stream processing, output IP Stream in MPTS with 8 IP Address or SPTS with 256 IP address
