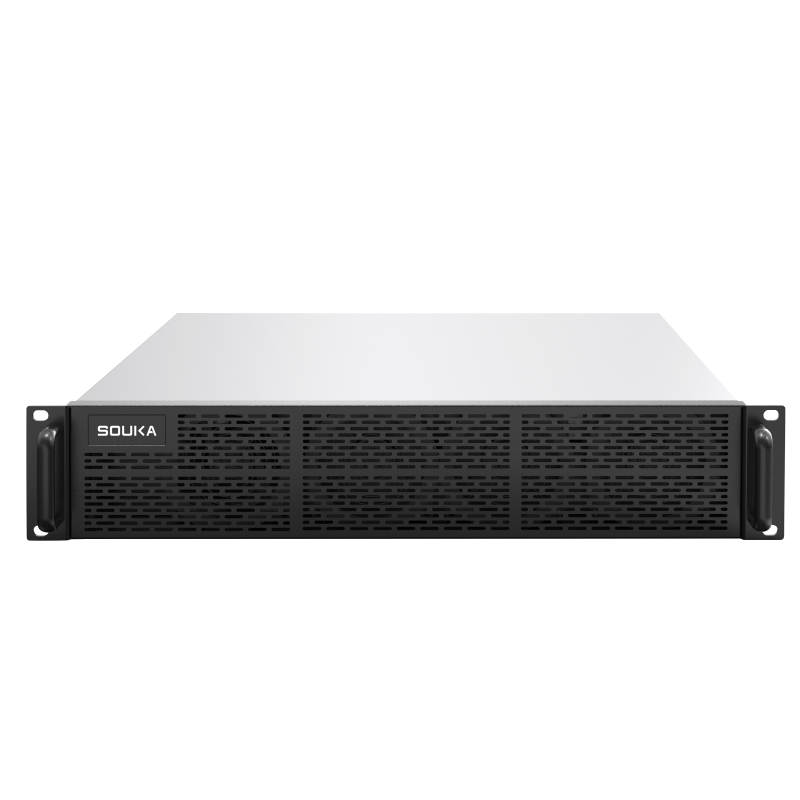

SOUKA IPTV Streaming Server for Hotels-500 Users, 100HD Channels, Multi-Protocol Support

SKD3310 is a headend device for medium-sized commercial IPTV or digital TV systems suitable for business hotels, clubs, hospitals, bathhouses, schools, leisure clubs and other places (supporting 500 or less terminals, 100HD/200SD channels). This is a IPTV server product with high integration, high cost performance and high configuration (default 16G, expandable to 32G memory). It can support multiple 100/1000M input ports, support mainstream protocol encapsulation format conversion and streaming media publishing, and can flexibly adapt to a variety of systems. It supports cloud network management, live channel, ordering service, mall, information release, music, hotel service and other functions, and can integrate with PMS system of hotel.

Brand:
SOUKA
Item NO.:
SKD3310
Order(MOQ):
1
Payment:
EX-WORK
Product Origin:
China
Color:
Black
Shipping Port:
Shenzhen
Lead Time：
3 working days

Inquiry now

Product Detail

SKD3310

IPTV Server Headend Stream Server supports Max 500 Users, 100 HD Channels

Features:

1.Protocol conversion among UDP/RTP/RTSP/HTTP/DASH/RTMP/HLS/SRT.

2.supports 100HD/200SD, 120G SSD, 16G RAM memory.
3.Supports cloud network management.

4.Support program PSI/SI information editing and MPTS/SPTS parsing.
5.Support set-top box Ul interface customization.
6.Support user management software and terminal online software upgrade.
7.Can integrate with PMS system for hotel.

8.Support end-user management, channel program list management.

9.Supports live channel, video stream processing, and advertising (video,text, image) overlay, function,etc.

Specifications:

Parameters

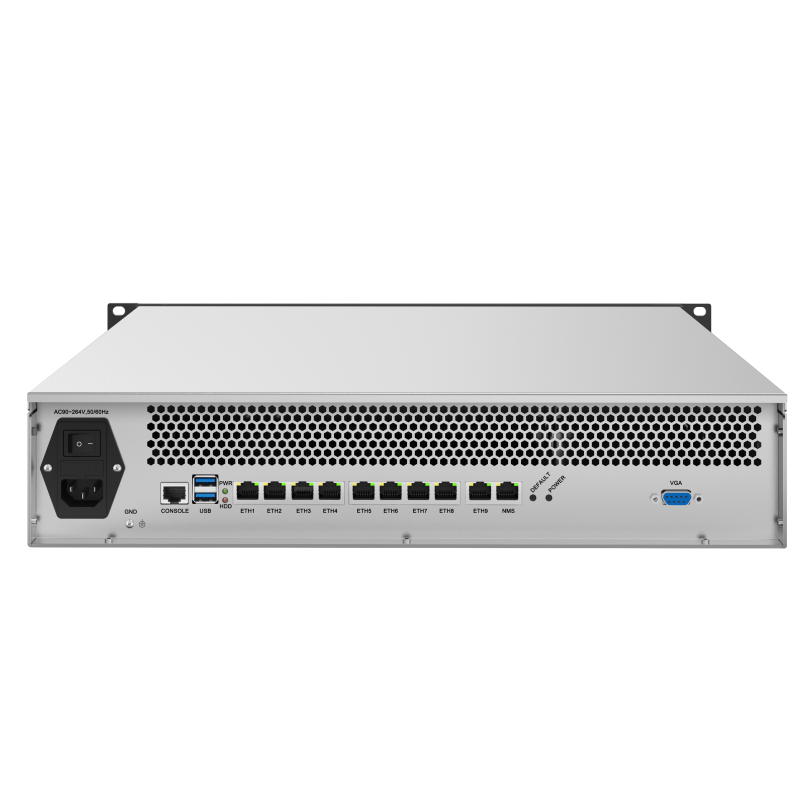

Input Connector	RJ45,100/1000M Auto-Negotiate
Input Protocols	UDP/RTP/RTSP/HTTP/DASH/RTMP/HLS/SRT
Network Card	8Inteli210/i2111000M/2Inteli3501000M
CPU	Celeron/Pentium Series
SSD	120G(default)
RAM Memory	16G(default)-32G DDR4 260PIN SO-DIMM 1.2V
Supply Voltage	90-264VAC
Packing Size	55.5(L)49.5(W)18.5(H)cm
Dimension	48.4(W)47.8(D)8.86(H)cm
Weight	G.W: 8kg, N.W: 6kg
Language	中文/ English
Maximum Current	8500mA
Logo	SOUKA/White label

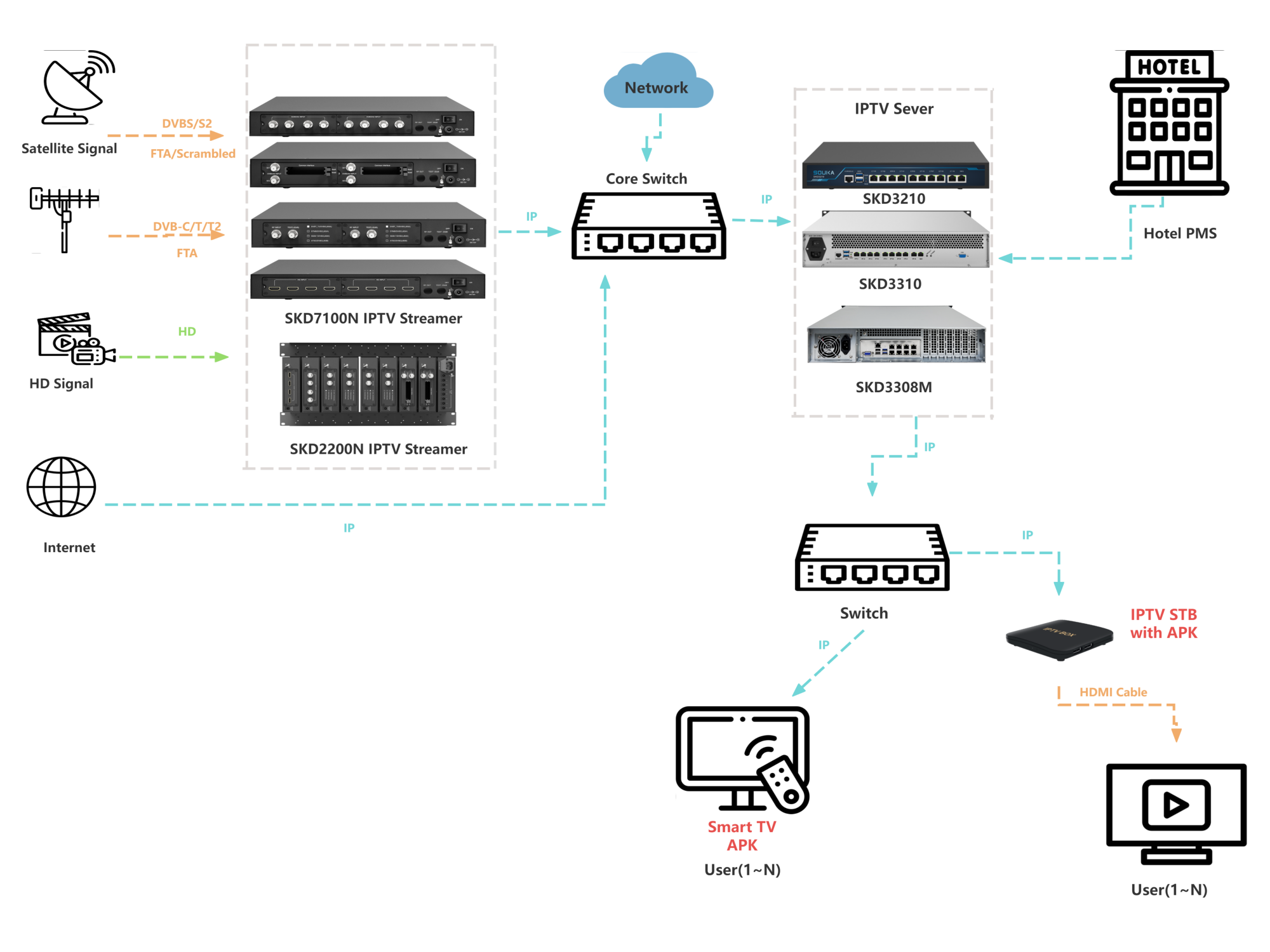

Principle Chart:
